HOW TO USE KONE DECODER?丨Potensi Elevator
author: Potensi-Ella
2022-03-08
KONE ENCODER USER MANUAL (LCEUIO TOOL USER MANUAL)
All LCE User interface of 6.xx based elevators and newer elevators will be locked after 10000 starts. The LCEUIO tool could unlock the LCE User interface.
Method One (Connect tool to board firstly, then turn on the tool)
(80% of the elevator could be encoded by this way)

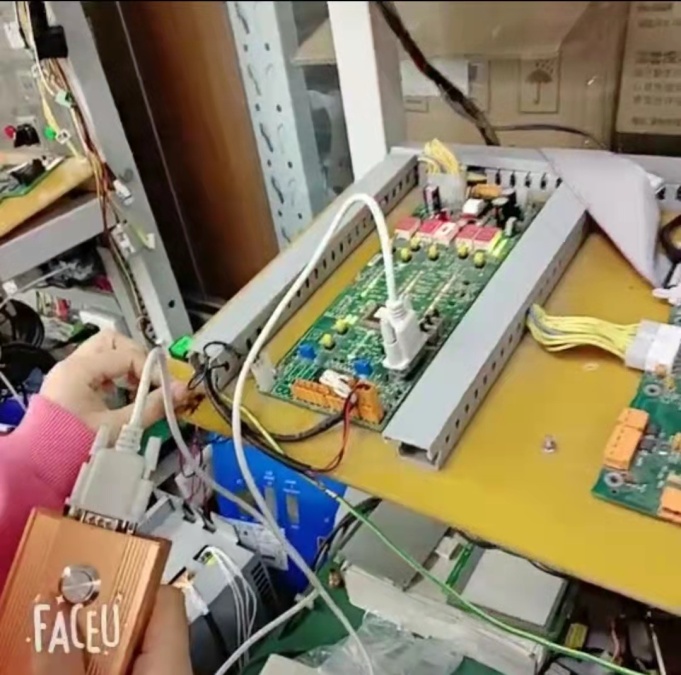

A: Connect the board and tool with the D9 connector (D9 wire)
B: Turn on the LCEUIO tool(Switch is on the left up corner of the tool)
C: Press the round start button until the light turn on the green or orange for around 3~5 seconds
D: Decode successfully (If decode failed, try Method three below)
Method Two for MRL elevator (Connect tool to board firstly, then turn on the tool)
A: Connect the board and tool with the D9 connector (D9 wire)
B: Set the elevator on the inspection status
C: Turn on the RS232 switch of the board
D: Turn on the LCEUIO tool(Switch is on the left up corner of the tool)
E: Press and hold the start key until the LED turns green
F: Turn the RS232 switch back to the Original location
G:Check whether the display has a digital display, and if there is a digital display, it proves that the decoding was successful
Method Three (Turn on the tool, then connect tool to the board)
A: Turn on the LCEUIO tool(Switch is on the left up corner of the tool)
B: Press the round start button, light turns red
C: Connect the RS232 connector on the board with the tool by the D9 connector (D9 wire)
D: Wait 5~30 seconds, the light turns green or orange, encode successfully
