How to Test the Condition of Elevator Wire Ropes After Installation?

After installing new elevator wire ropes, ensuring their proper condition is essential to guarantee safe and smooth elevator operations. Even the highest quality ropes can present installation-related inconsistencies such as uneven tension, misalignment, or improper lubrication. These issues, if not detected early, can lead to premature wear and potential safety risks. In this article, we provide a comprehensive guide on testing the condition of newly installed elevator wire ropes using precise measurements, standardized methods, and preventive strategies. Our goal is to equip maintenance personnel with the knowledge and techniques needed to verify that the installation meets international standards and operational requirements.

Key Inspection Parameters After Installation

Newly installed wire ropes must be inspected immediately to confirm that they meet all performance criteria. The following parameters should be thoroughly checked:

Tension Consistency

• Measurement: Use a calibrated tension meter to measure the tension in each rope.
• Standard: Ensure that the difference in tension between individual ropes does not exceed 5%.
• Adjustment: Utilize hydraulic tensioning tools to correct any deviations.

Wire Rope Diameter

• Measurement Location: Measure the diameter in the mid-section of the rope, avoiding the end fixtures.
• Procedure: Randomly select three points along the middle section and calculate the average diameter using calipers or a laser measurement tool, applying a force of ≤10N to prevent deformation.

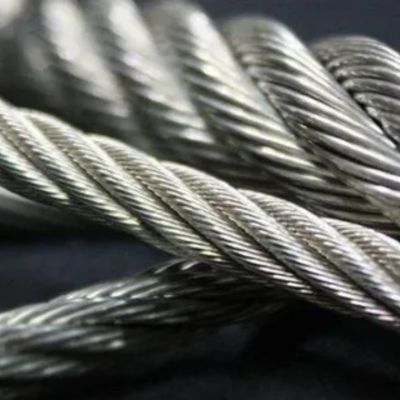

Strand Alignment and Twisting

• Visual Inspection: Examine the rope for any signs of twisted strands or “birdcage” using a 10x magnifier.
• Standards: Compare findings against ISO 4309 standards for acceptable strand alignment and deformation.
• Lay Length: Measure the lay length (e.g., for 6×19 ropes, a lay length of 6–7 times the rope diameter is expected) to confirm conformity.

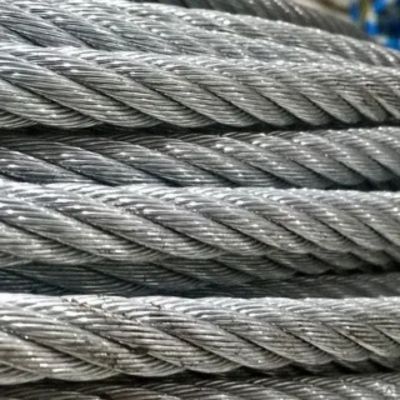

Lubrication Condition

• Observation: Wipe the rope with a clean white cloth to check for proper lubricant transfer.
• Standard: The lubricant should evenly penetrate the rope core, with no dry spots or clumping.
• Lubricant Type: Use ISO 4344-compliant lubricants that contain graphite or molybdenum disulfide.

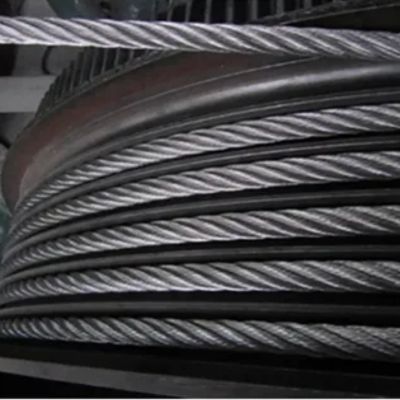

Alignment on Sheaves

• Inspection: Observe the rope’s path on sheaves and pulleys.
• Criteria: The rope should run smoothly without abnormal deviation or “jumping” off the groove.

Recommended Testing Methods

Once the key parameters are established, use the following testing methods to assess the wire rope’s condition accurately:

Tension Testing

• Method: Use a calibrated tension meter while the elevator car is centered in the shaft to ensure balanced load measurements.
• Action: Adjust any inconsistencies using hydraulic tensioning tools until the tension difference is within the allowed 5% threshold.

Diameter Measurement

• Method: Measure the rope’s diameter using precision calipers or laser measurement tools.
• Force: Apply a force of ≤10N to avoid compressing the rope during measurement.
• Procedure: Take measurements at three different points along the mid-section and calculate the average value.

Strand and Twisting Inspection

• Method: Run the elevator at low speed and visually inspect the rope with a 10x magnifier.
• Additional Checks: Measure the lay length and compare with ISO 4309 standards to ensure proper strand arrangement.

Lubrication Check

• Method: Wipe the rope with a clean white cloth to see if the lubricant is transferring evenly.
• Standard: If less than 30% of the surface shows lubricant, reapply the proper ISO 4344-compliant lubricant.
• Note: Avoid over-lubrication that might lead to slippage.

Non-Destructive Testing (NDT)

• Techniques: Use magnetic particle testing or ultrasonic testing to detect internal defects like broken wires or hidden corrosion.
• Benefit: These methods reveal issues not visible during a regular visual inspection.

Post-Installation Load Testing

• Static Load Test: Conduct a 125% static load test for 10 minutes to verify that the wire rope does not suffer permanent deformation.
• Dynamic Load Test: Perform a 110% dynamic load test for 10 cycles to ensure consistent tension and proper tracking.
• Elongation Monitoring: Mark the rope length immediately after installation and measure any permanent elongation over time (replace if elongation exceeds 2%).



Common Issues Found and Their Solutions

During the testing process, maintenance personnel might encounter several issues. Below are common problems along with their potential causes and recommended solutions:

Safety Note: Only trained professionals should adjust rope tension or disassemble rope end fixtures. Always adhere to manufacturer guidelines and international standards.

Preventive Maintenance and Follow-Up Checks

After installation and initial testing, ongoing preventive maintenance is crucial:

• Initial Re-Inspection: Conduct a re-check of tension and alignment within 72 hours after installation, then perform weekly checks for the first month.
• Lubrication Cycles: Based on usage, inspect and reapply lubricant every 3 months or after every 50,000 operating cycles, following ISO 4344 recommendations.
• Annual Load Testing: Perform static and dynamic load tests annually to verify that the rope continues to meet performance criteria.
• Environmental Monitoring: Regularly monitor temperature and humidity in the elevator shaft (keeping relative humidity below 80%) to prevent corrosion.

Compliance with International Standards

All testing and maintenance practices must adhere to recognized international standards:

• ISO 4344: Specifies the standards for elevator wire ropes.
• EN 81-20/50: Outlines safety requirements for elevators.
• ASME A17.2: Provides guidelines for tension deviation, recommending that single-rope tension differences do not exceed 5%.

Ensure that all testing equipment is calibrated regularly to maintain accuracy and that maintenance protocols meet these standards.

Conclusion

Ensuring the condition of elevator wire ropes immediately after installation is crucial for long-term safety and performance. You can identify and correct installation issues before they evolve into serious safety risks by following precise testing methods—such as tension measurement, diameter checks, strand alignment inspection, lubrication evaluation, and load testing.
