Model NO.: KC-25

Quantity:

Product Description

-Potensi Elevator Air Conditioner KC-25 Abstract-

Our Elevator Air Conditioner has passed the technical content of the national quality system, showing a leading position in the application of technology in the industry. The product has passed the CCC certification of the national quality system, and can be matched with many brand elevators such as Hitachi, Otis, Mitsubishi, Thyssen, Schindler, KONE, Sanyo, Yongda, Canny, BLT, Toshiba and so on.

-Potensi Elevator Air Conditioner KC-25 Advantages-

The Elevator Air Conditioner for heating-and-cooling air conditioning unit and consists of main board and display board. It has advanced function, high reliability, high anti-jamming ability and its the installation is easy for users when it is also beautiful.

①Panasonic compressor
②Big Cooling Capacity but Energy Saving
③No water & Low noise & much safe
④Long life time & long warranty time
⑤Professional technical support at 24hours

-Potensi Elevator Air Conditioner KC-25 Technical Parameter-

Model	KC-25	Compressor Brand	Panasonic
Control	Single-cooled car remote control	Cooling Capacity	2600W
Heating Capacity	2100W	Rated Power	850W
Circulating Air Volume	380CBM/H	Maximum Input Current	7.2A
Maximum Input Power	1330W	Voltage	220-50HZ/110VAC
Power Cable Diameter	2.5㎡*3	Rated Current	4.8A/9.6A
Noise	Cabin≤48 hoist way≤58DB	Energy Saving Class	IP×4
Drainage	Free Drain ( No water)	Volume (mm)	580(L)×450(W)×350(H)
Weight	33KG	Refrigerant	R22
Type of protection against electric shock		Ⅰ

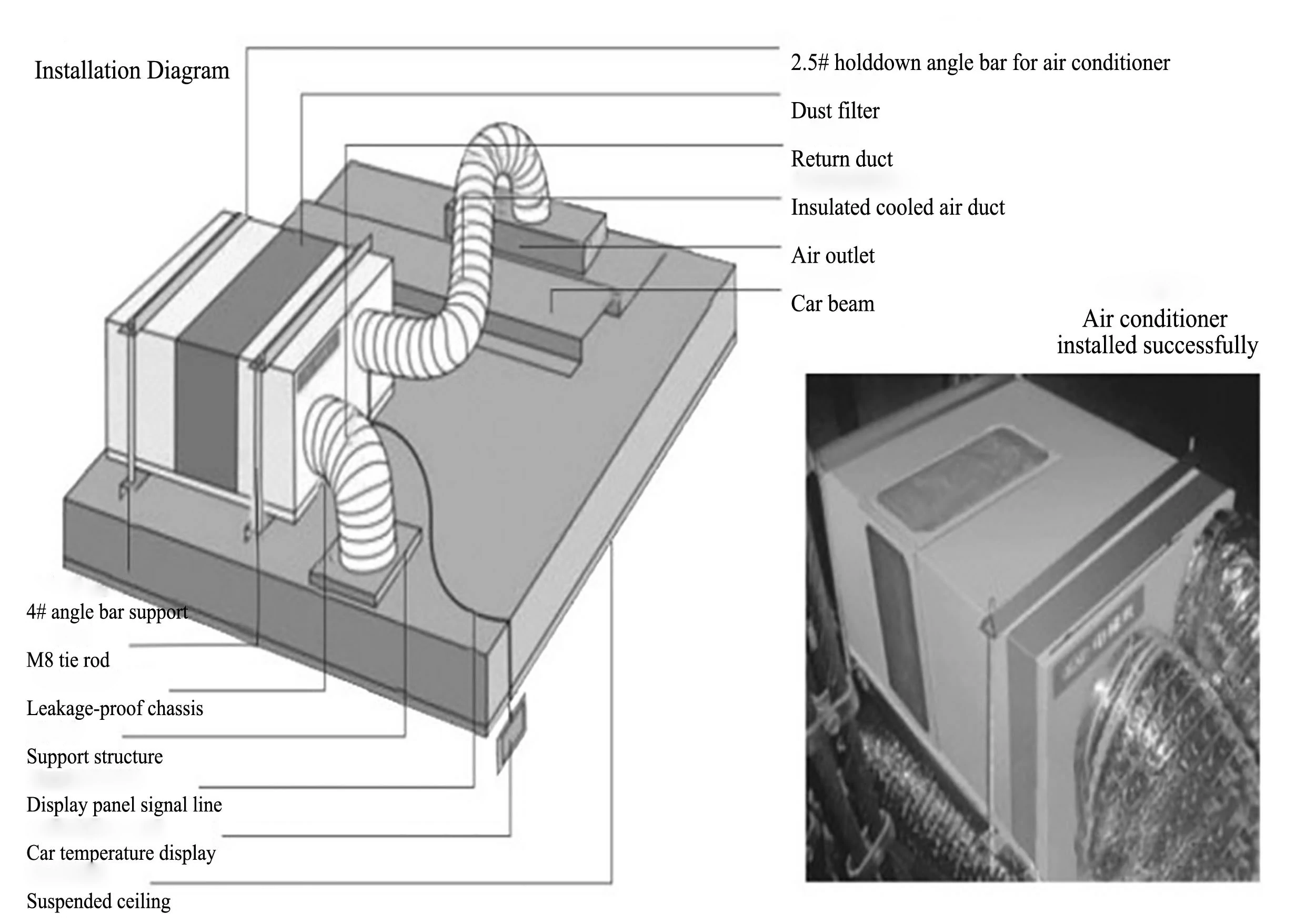

-Potensi Elevator Air Conditioner KC-25 Component Installation Picture-

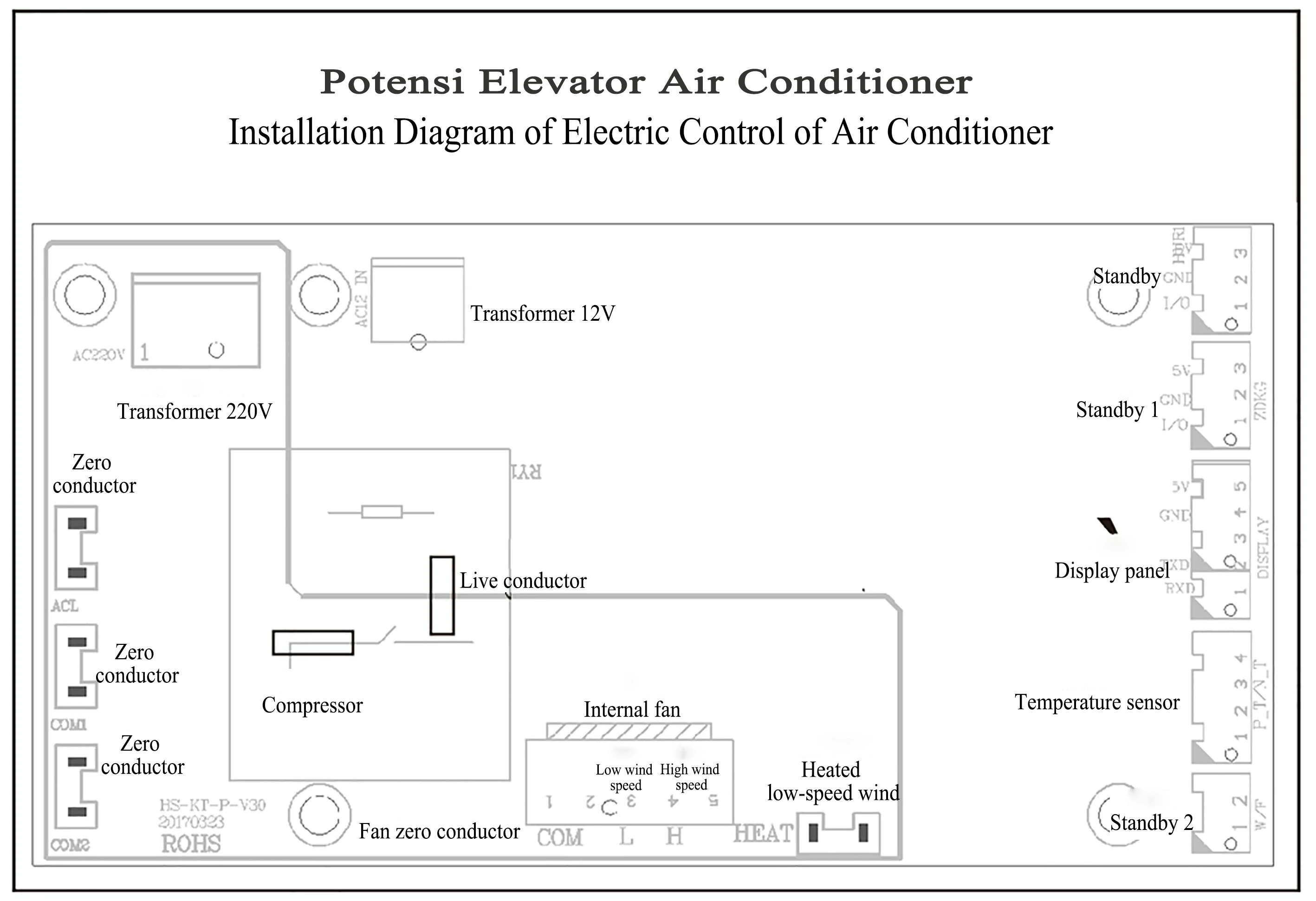

-Potensi Elevator Air Conditioner KC-25 Electric Control Wiring Picture-

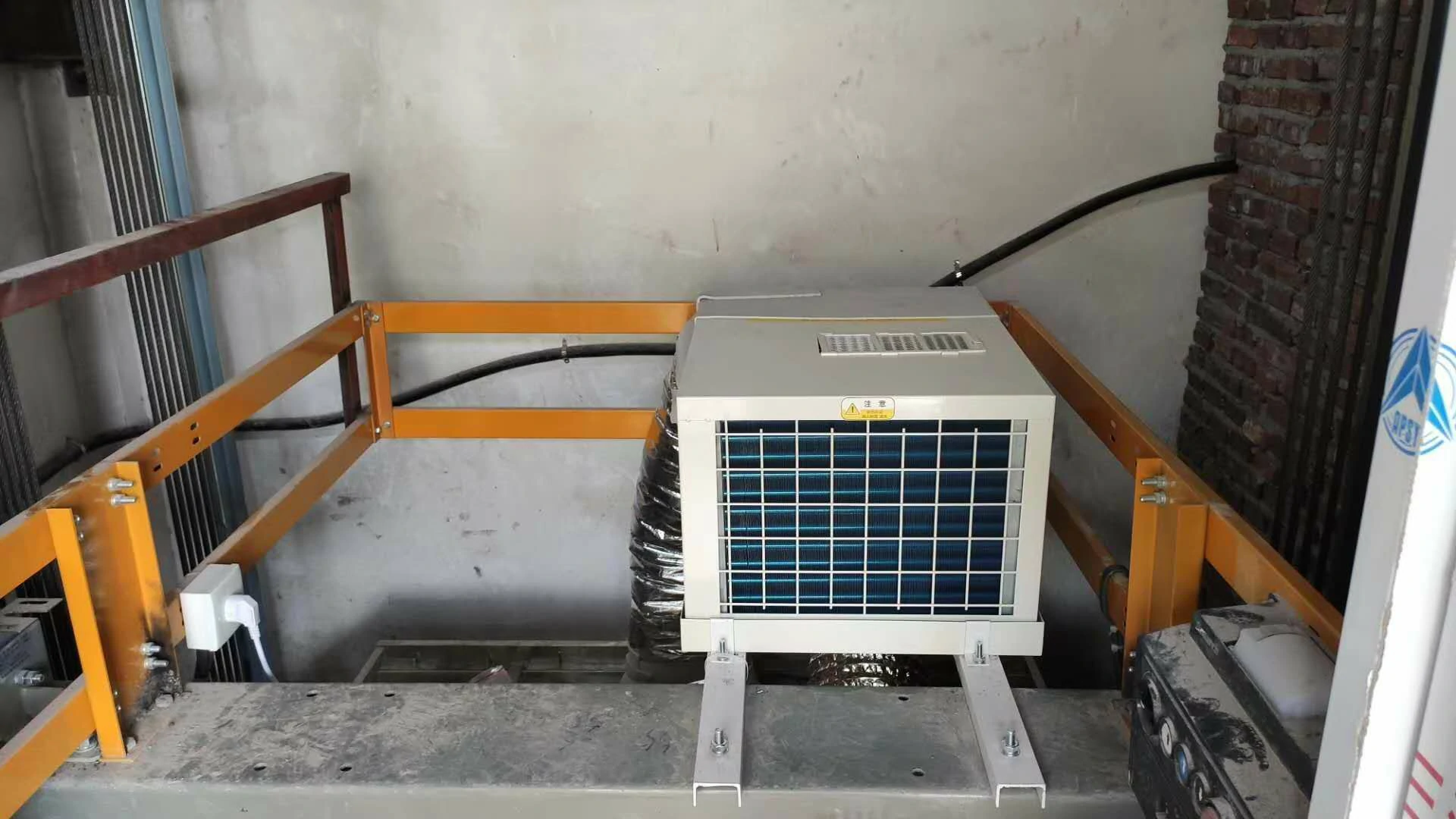

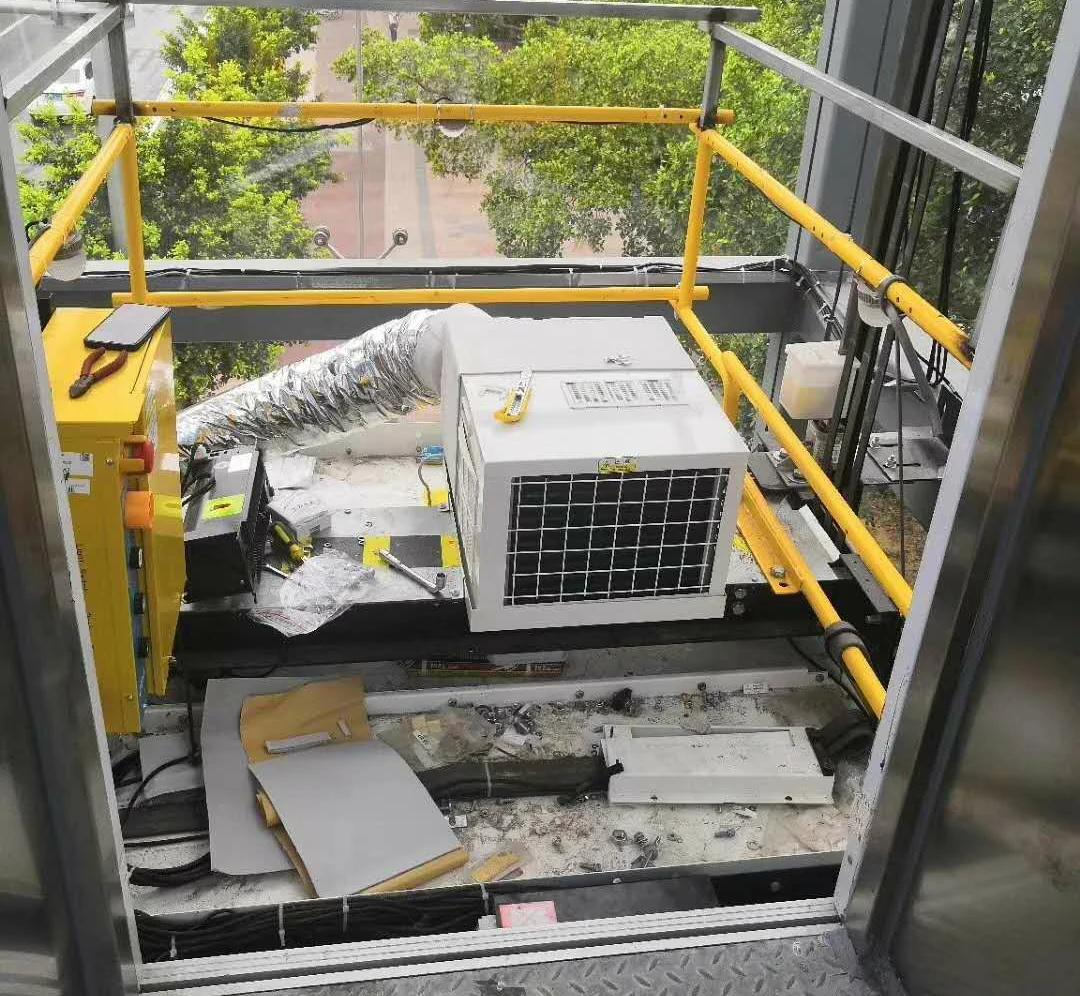

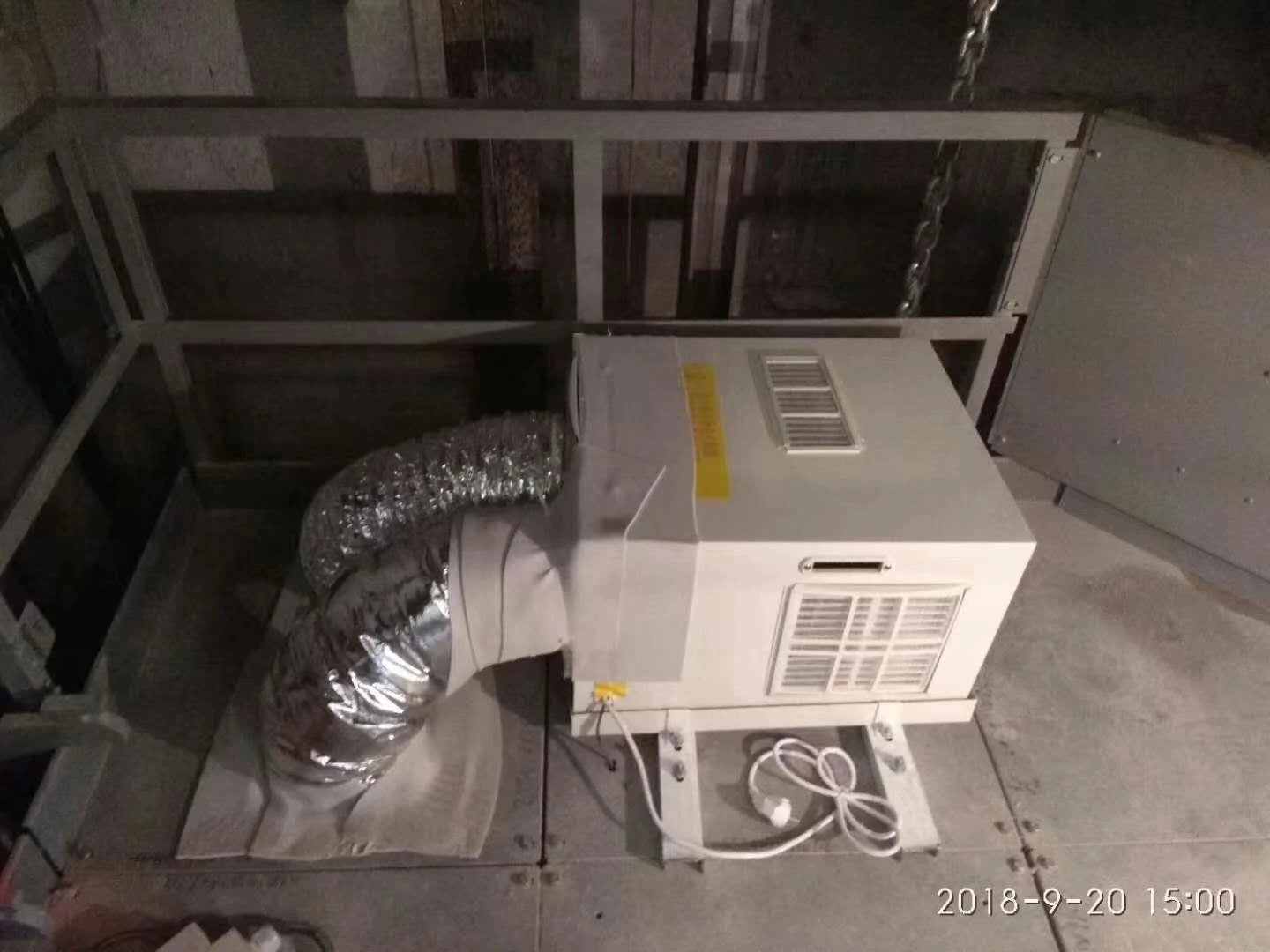

-Potensi Elevator Air Conditioner KC-25 Installation Site Picture-

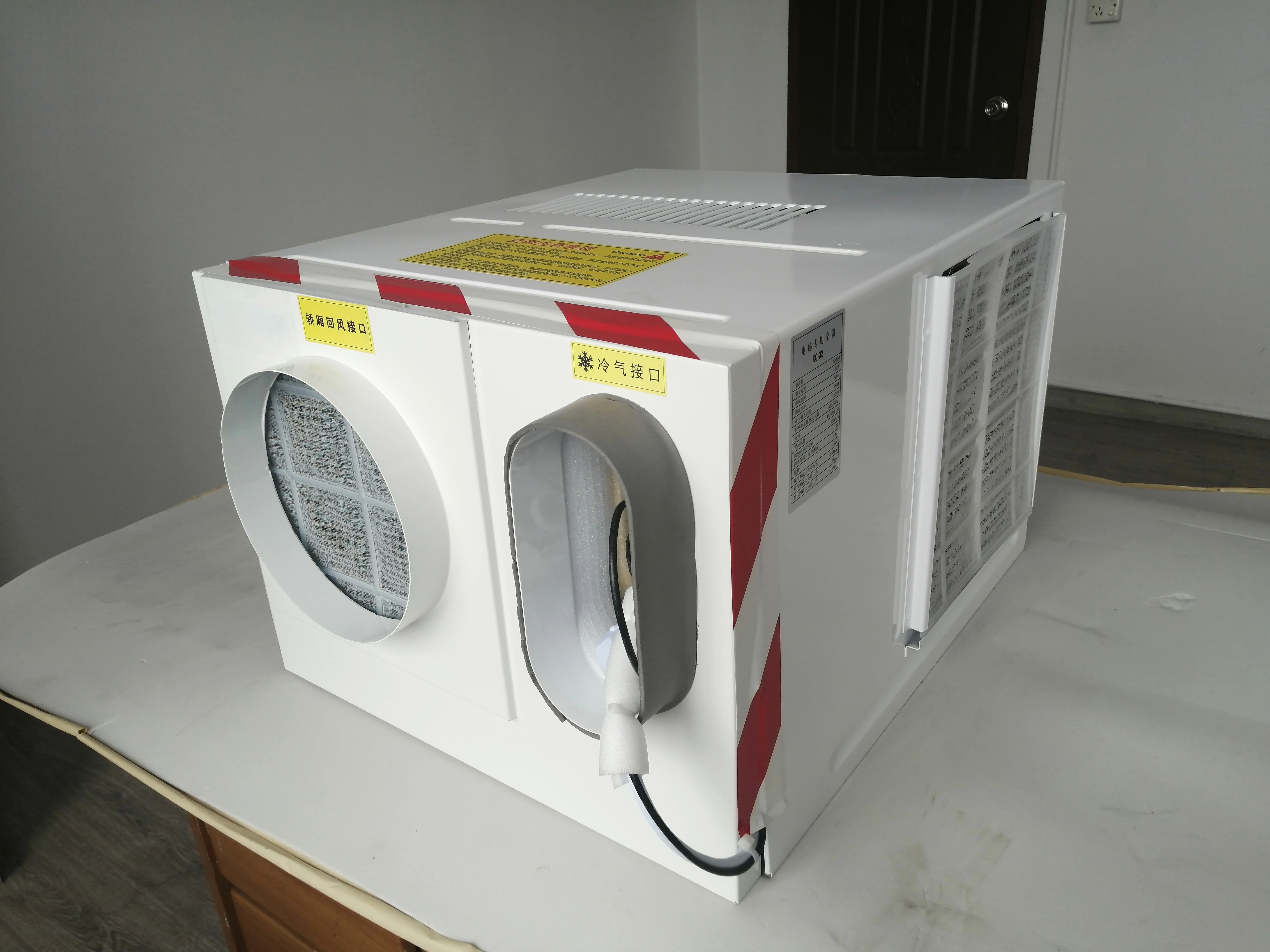

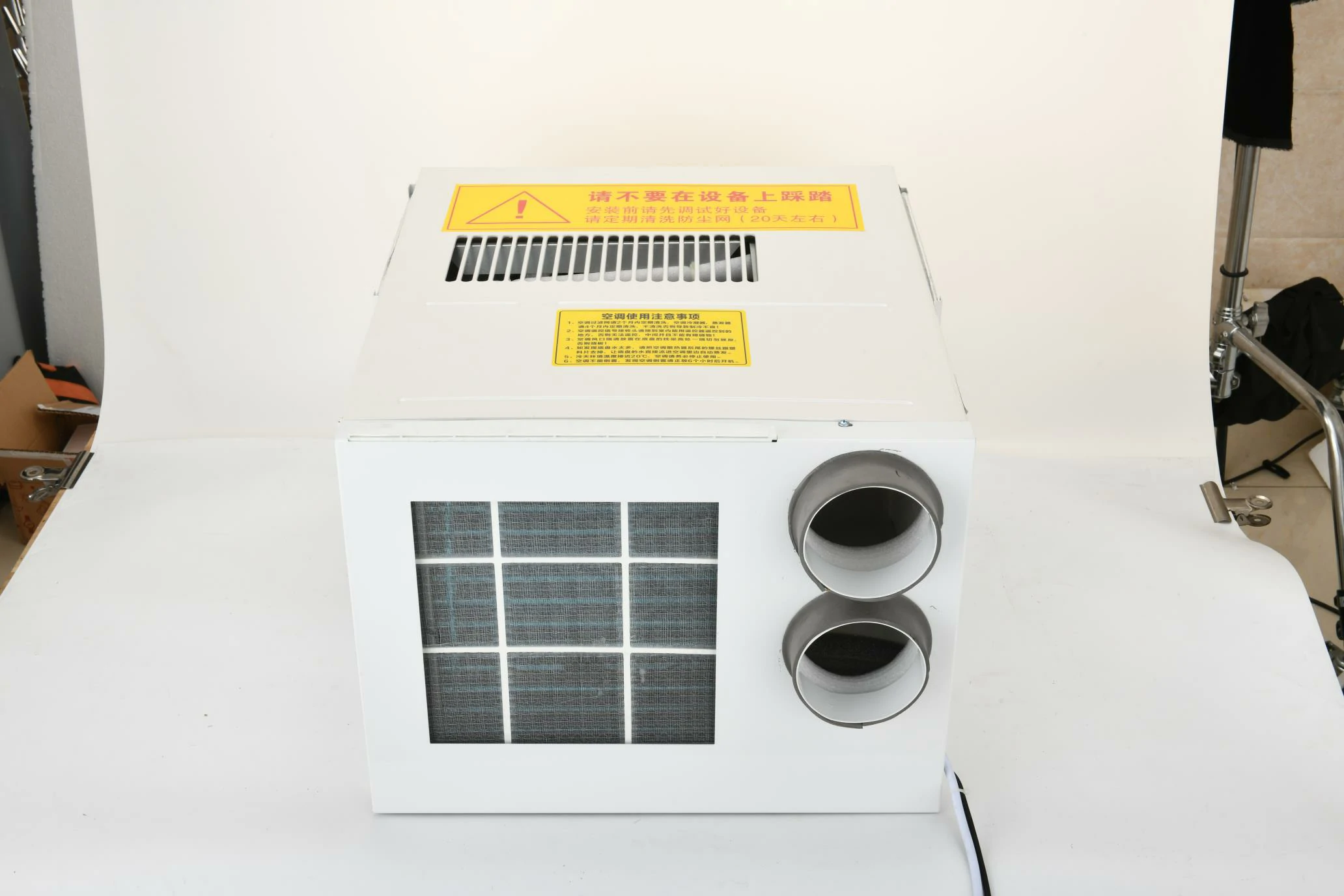

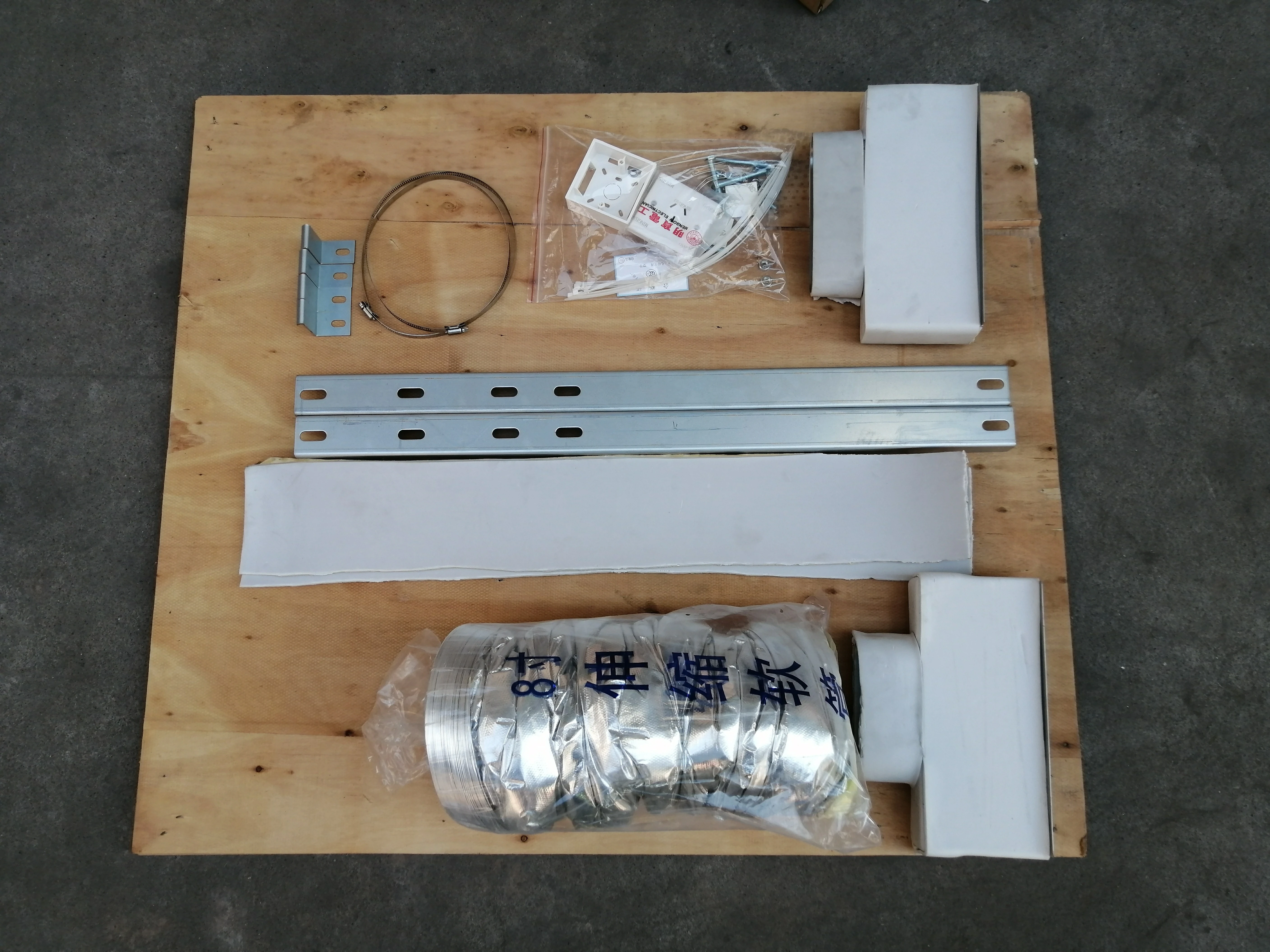

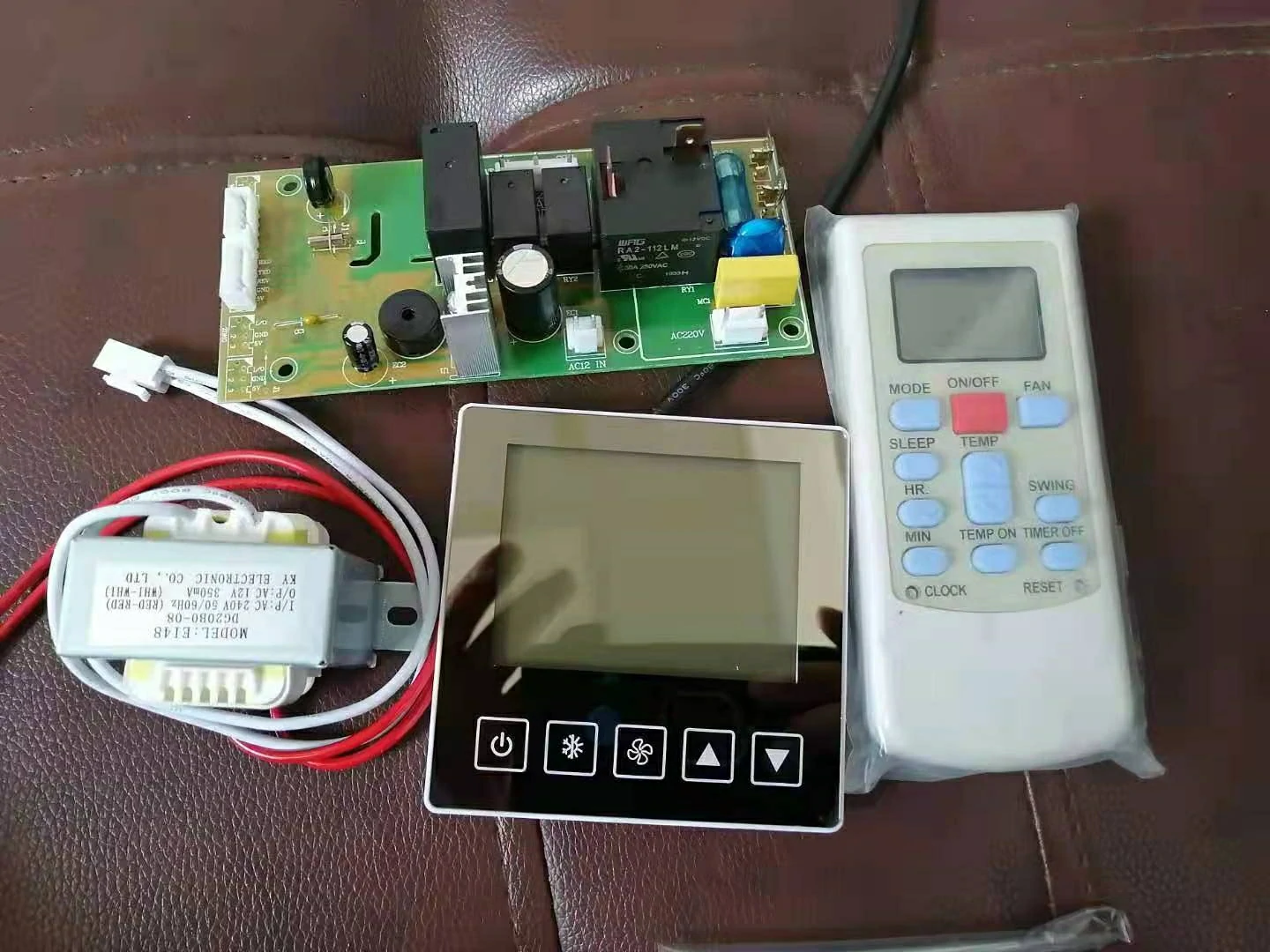

-Potensi Elevator Air Conditioner KC-25 Parts Picture-

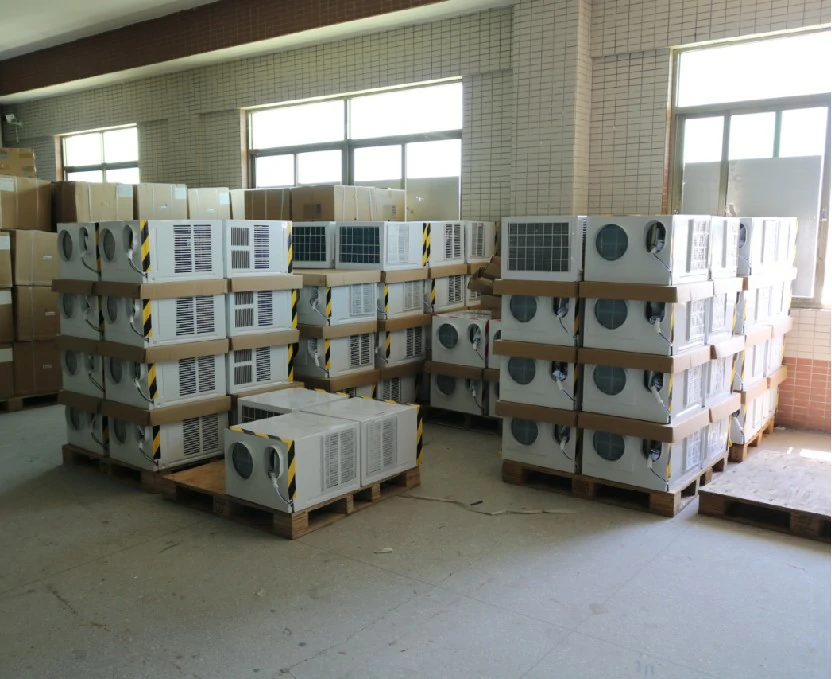

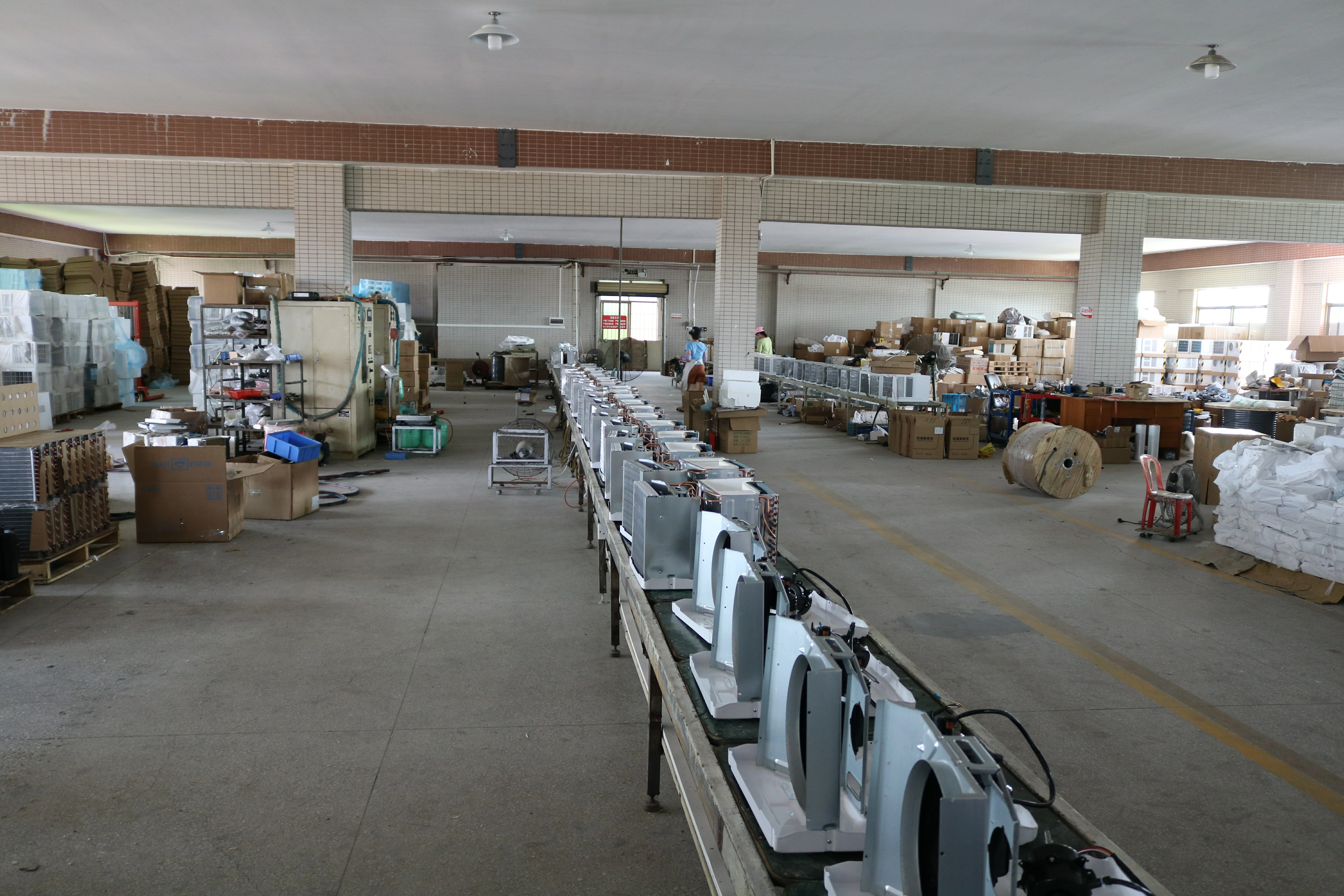

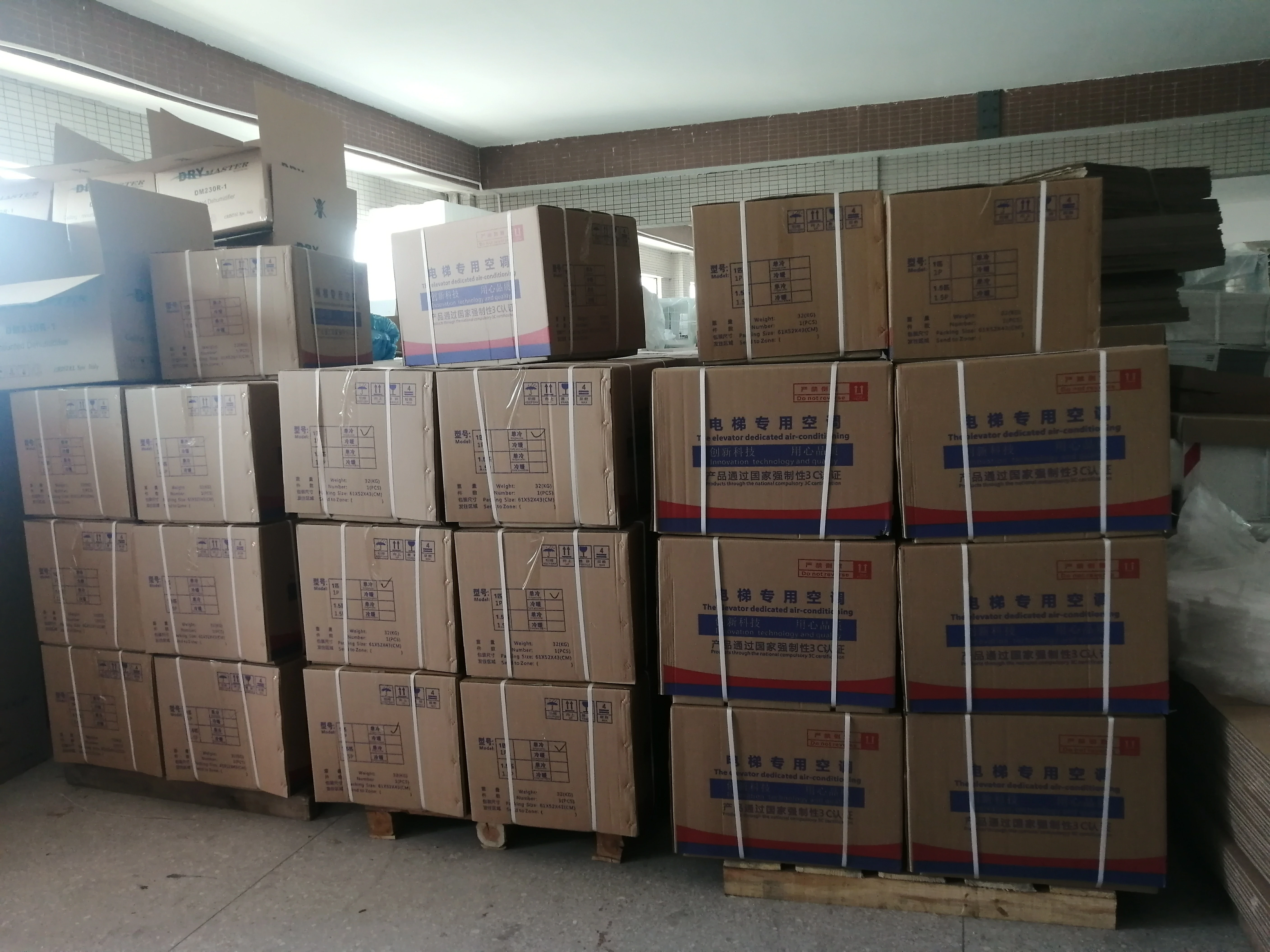

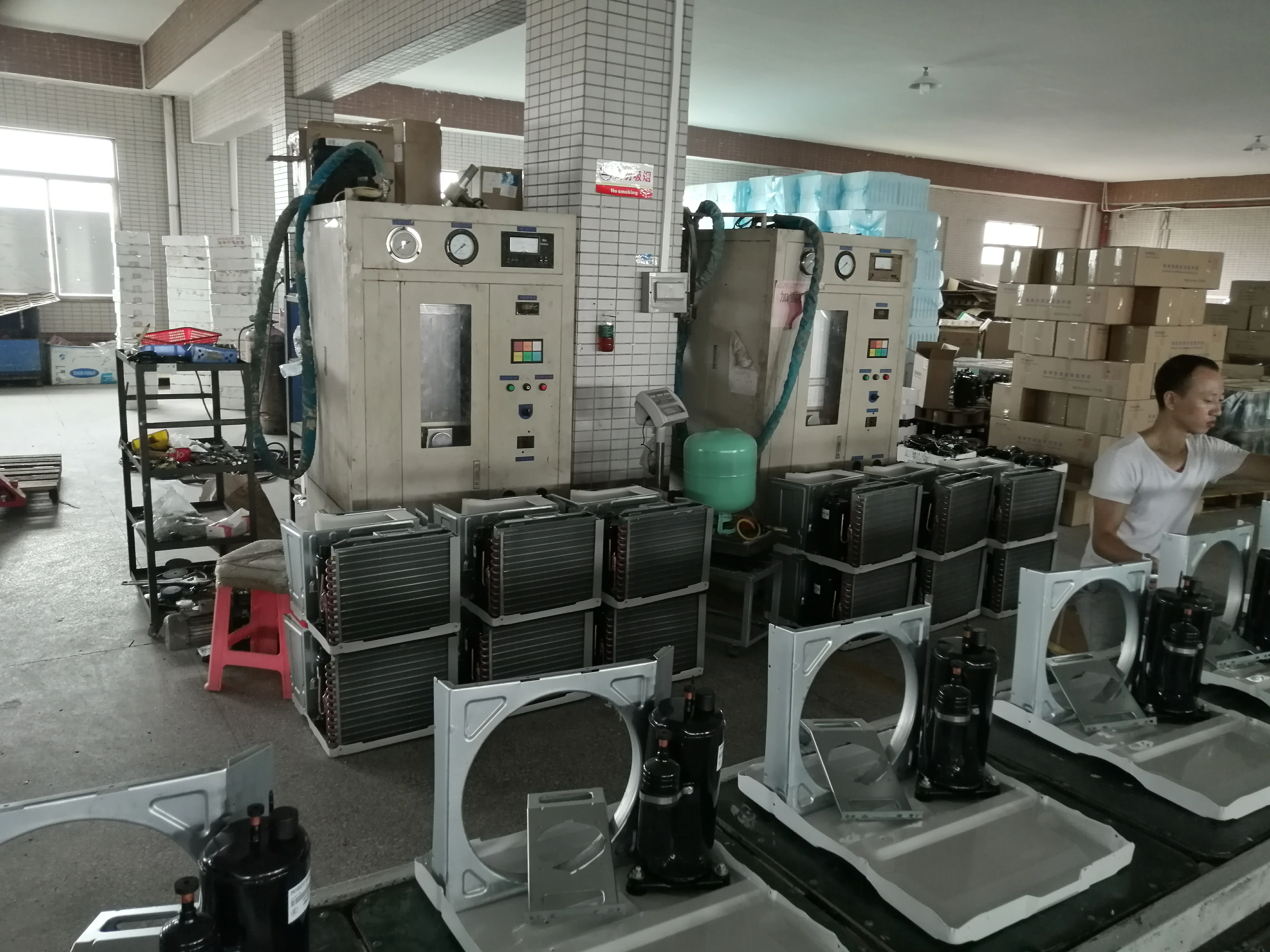

-Potensi Elevator Air Conditioner Factory and Warehouse Picture-

-Potensi Elevator Air Conditioner Project Picture-

Click to Download Technical Manual here

-Related Products-

Related elevator air conditioning products：KC-25,FB-9B,FD422A, GFDD430-91-220, GF-RV140, SD5012PT-24H, CY125A2P2,VF-140,FB-1042B,ZQF-330,KM255063, GYFB-9B,FB-9K, GYFB-9B-2, GYQF-330, GYFB-9B-1, GYFB-9B-3, GYQF-1042-1(C), GYQF-1042B, GYQF-1042B-3(E), GYQF-1042B-4(F),GYQF-1042B-5(G) etc.

-Additional Info-

Packaging: Export Packing
Transportation: Fedex, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western union, Paypal, L/C, Credit Card and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally

-RFQ-

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
