elevator cross flow fan GYQF-1042B-5(G)
elevator cross flow fan GYQF-1042B-5(G)

elevator cross flow fan GYQF-1042B-5(G) | Potensi Elevator

Model NO.
GYQF-1042B-5(G)
Quantity:

Keywords:elevator fan,elevator exhaust fan,elevator blower fan,nylube fan,elevator fan price,elevator cabin fan,elevator pressurization fan,elevator car top fan,elevator cab fan,fan elevator,otis elevator fan,fan lift,elevator fans,cross flow blowers,cross flow fan design,elevator cross flow fan,elevator ventilation fan,cross flow blower fan,cross blower fan,cross flow blower manufacturers,Lift Car Ventilation Fan,Elevator Cabin Cross-flow Fan,Elevator Car Top Fan,Lift Cross Flow Fan 220V,Lift Car Ventilator Device,Cheap Elevator Cross-flow Fan for Sale,Elevator Cross Flow Fan Supplier,Lift AC Fan Manufacturer,Elevator Rotary Fans

1、 Purpose:
The machine is applicable to elevator car, driving operation room, purification clean room, laboratory, production workshop, corridor, distribution box, instrument panel and other places as well as air conditioning equipment for heat dissipation.

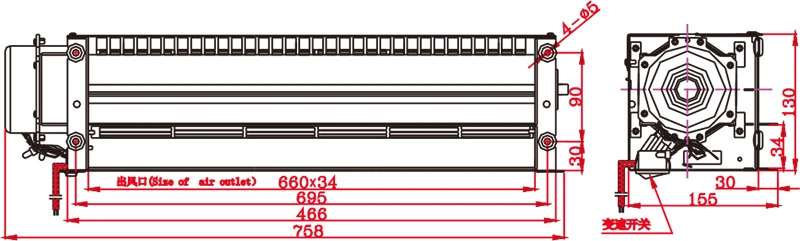

2、 Dimensions
Air outlet size: 660 × thirty-four
Installation dimension: 695

3、 Precautions:
1. The operating environment shall not be too wet. It is required to be waterproof and drench proof.
2. Do not clean or wipe under working conditions (in use) to prevent personal injury accidents.
3. It must be used according to the specified working voltage to prevent damage to the fan.
4. If the power cord of fan and fan is damaged, it must be sent to the manufacturer or professional personnel for maintenance and replacement.
5. The fixed wiring for installing the appliance must be equipped with power disconnection devices with an opening distance of at least 3mm from all pole contacts.







Technical Parameter


型号
Model
电压V
Voltage
频率Hz
Freq.
电流A
Current
功率W
Power
噪音dB
Noise
风量M³/min
Airflow
转速RPM
Speed
风叶尺寸mm
Blade Size
风叶材质
Blade Material
顔色
Color
GYQF-1042B-5(G)单速AC110/220/23050/600.09/0.1135≤509 ± 0.51200 ±100Φ100×650GFAS■Black ■Grey
■Cream
Aluminium Alloy
GYQF-1042B-5(G)双速AC110/220/23050/600.18快:35
慢:25
≤50快:9± 0.5
慢:7.5 ± 0.5
快:1200 ±100
慢:1000 ±100
Φ100×650GFAS■Black ■Grey
Aluminium Alloy


RFQ
——————

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?

Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)

Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
