Fixing Elevator Door Locks: Step-by-Step Solutions

As elevator maintenance personnel, we understand the importance of ensuring elevators operate smoothly and safely. One of the key components of an elevator’s functionality is the door lock system. The elevator door lock not only ensures the doors stay securely closed when in operation but also plays a critical role in preventing accidents. When these locks fail, it can result in delays, safety risks, and the need for costly repairs. In this article, we will walk you through common elevator door lock problems, their causes, troubleshooting steps, and how to properly repair or replace faulty components.

Understanding the Elevator Door Lock System

Before diving into troubleshooting, it's essential to understand the elevator door control system and its components. The door lock system includes mechanical locks, electrical contacts, limit switches, and solenoids. These components work together to ensure the elevator doors open and close properly, preventing the doors from moving while the elevator is in operation.

• Landing door locks: These locks are located on the elevator's landing doors. They prevent the doors from opening when the elevator is not properly aligned with the floor.
• Car door locks: Located on the elevator car, these locks ensure the car doors stay securely closed during movement.

Understanding these systems will help us diagnose and resolve door lock issues more effectively.

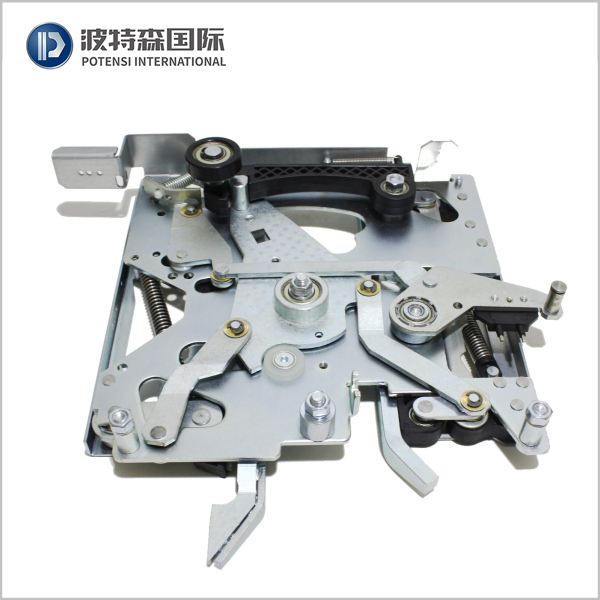

For Fermator door vane CDL.VF00CI000

Common Elevator Door Lock Problems and Their Causes

Let’s now look at some common elevator door lock failures and their causes:

Each problem has its unique cause, and identifying the root issue is critical to ensuring a long-lasting solution.

Step-by-Step Door Lock Troubleshooting Guide

When faced with a door lock malfunction, following a systematic troubleshooting approach can help identify the problem quickly. Here’s a step-by-step guide to help you troubleshoot common elevator door lock issues:

Step 1: Power Off and Ensure Safe Access

Before starting any maintenance work, always ensure the elevator is powered off. This ensures your safety during the repair process. Set up warning signs and safety barricades to alert others to avoid using the elevator during maintenance.

Step 2: Visual Inspection

Conduct a visual inspection of the door lock mechanism, paying attention to any misalignment, physical damage, or debris. In many cases, something as simple as dirt or a small obstruction can cause a lock to malfunction.

Step 3: Test Lock Solenoid Function

Use a multimeter to test the lock solenoid for continuity. A faulty solenoid may fail to engage or disengage the lock, leading to door operation issues. If the solenoid does not function correctly, it should be replaced.

Step 4: Verify Limit Switch Signals

Check the limit switch to ensure it is sending the correct signals to the door control system. A faulty switch can cause the elevator to think the door is locked when it isn’t, or vice versa. Testing the switch with a continuity tester is a simple way to confirm its functionality.

For Siemens limit switch 3SE3 100-1E

Step 5: Check Wiring and Connectors

Loose or damaged wiring can cause intermittent door lock failures. Inspect the wiring and connectors for signs of corrosion, wear, or disconnection. Repair or replace any damaged components.

Step 6: Manually Test Door Lock Engagement

Manually test the door lock by attempting to engage and disengage it. This can help you identify issues with the mechanical components, such as a worn latch or spring failure.

Repair and Replacement Recommendations

Once you have identified the problem, the next step is to decide whether to clean, repair, or replace the faulty components. Here are our recommendations:

• Cleaning: If the lock is simply dirty or has small debris obstructing its movement, cleaning the lock mechanism may resolve the issue. Use a non-corrosive cleaner to remove dirt and dust from the lock and surrounding components.
• Repair: If the lock components are misaligned or the solenoid is faulty, repair is often possible. For example, if the lock solenoid is not engaging properly, recalibrating or replacing it may solve the issue.
• Replacement: If the lock components are severely worn out or damaged, such as a broken latch or corroded solenoid, replacement is necessary. Be sure to use high-quality replacement parts to ensure the lock operates smoothly for years to come.

Always remember that using OEM (Original Equipment Manufacturer) parts or trusted brands like POTENSI will ensure that the new parts are compatible and reliable.

Preventive Maintenance Tips

Preventive maintenance is key to reducing the frequency of door lock issues. Here are some tips to help maintain the integrity of your elevator’s door lock system:

• Regular Inspections: Schedule routine inspections to check for signs of wear and tear on the locks. Look for misalignment, worn-out components, or any malfunctioning parts.
• Lubrication: Properly lubricate moving parts to reduce friction and wear. This can extend the lifespan of the lock system.
• Monitor Error Logs: Many modern elevators have diagnostic systems that log errors. Monitoring these logs can help detect potential issues before they lead to a failure.
• Proper Adjustment: Ensure that the door alignment is correct. Misaligned doors can cause excessive wear on the lock mechanism.

Elevator door vane

Safety Precautions

Working with elevator door locks can be dangerous if proper safety precautions are not taken. Always lock out power to the elevator before performing any work, and never bypass interlocks during testing. Using personal protective equipment (PPE) such as gloves and safety glasses is essential to avoid injury.

Common Mistakes to Avoid

• Over-lubricating locks: Excessive lubrication can attract dust and debris, leading to further blockages.
• Ignoring intermittent lock signals: Sometimes, a faulty signal can be overlooked, but it can lead to more significant issues if left unresolved.
• Replacing parts without checking connections: Ensure that electrical connectors and wiring are thoroughly inspected before replacing parts.

Final Checks and Test Run

After completing the repair or replacement, it’s crucial to perform a final check. Ensure all components are securely reattached and properly aligned. Run the elevator in inspection mode and manually check the door lock system to confirm it is functioning as expected. Log all maintenance activities and note any irregularities for future reference.

Conclusion

In conclusion, addressing elevator door lock issues promptly is essential to maintaining elevator safety and preventing costly downtime. By following the steps outlined in this article, you can efficiently troubleshoot and repair common door lock problems.

For long-lasting and reliable repairs, be sure to use high-quality replacement parts. Explore the wide range of elevator door lock components and sensors offered by POTENSI to ensure your elevators run smoothly and efficiently for years to come.
