7 Steps for Elevator Light Curtain Safety Check

For beginners in the elevator industry, understanding the safety mechanisms of elevator light curtains can feel overwhelming. However, ensuring the proper functioning of these devices is crucial for passenger safety. In this guide, we’ll simplify the process of testing and verifying elevator light curtain sensors, breaking it down into clear, actionable steps anyone can follow.

What Is an Elevator Light Curtain?

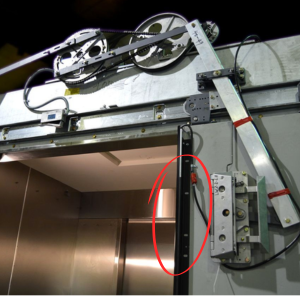

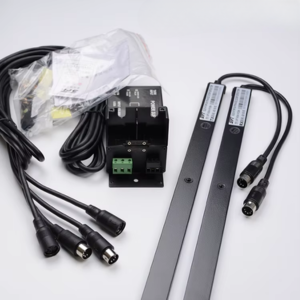

An elevator light curtain is a safety device installed at elevator doors. It uses infrared beams between an emitter and a receiver to detect objects or people in the doorway. If the beams are blocked, the light curtain signals the elevator to keep its doors open, preventing accidents.

Preparation for Safety Detection

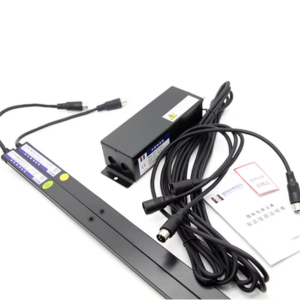

Before starting the safety detection process, gather the necessary tools:

• A soft cleaning cloth
• A small test rod or opaque object (with a diameter matching the light curtain’s minimum detectable size)
• A multimeter (optional, for electrical tests)

Ensure the elevator is in maintenance mode, and the power supply to the light curtain is turned off before inspection.

Step 1: Check the Installation

• Inspect the Mounting: Verify that the light curtain’s emitter and receiver are securely fixed to the equipment. Loose installation can affect alignment and performance.
• Alignment Verification: Confirm that the emitter and receiver are on the same plane. The area they create should form a clear rectangle, ensuring full coverage.
• Cable Connections: Check that the cables for both the emitter and receiver are properly connected to the power supply and control unit. Ensure terminals are secure and free of damage.

Step 2: Power On and Observe Initialization

• Turn on the Power: When powered on, the light curtain sensor will perform a self-test, synchronization, and calibration.
• Observe Indicators:
  • After about one second, the emitter's yellow indicator should remain steady.
  • The receiver’s indicators should turn off, signaling that the system is ready to operate.

If the indicators display unusual behavior, refer to the manufacturer’s manual for troubleshooting tips.

Step 3: Test the Light Curtain in Working Conditions

With the system in its working state, observe the following scenarios:

1. No Obstruction in Protection Area:
   • When no object is in the detection zone, the receiver's red communication indicator should be off.
   • The emitter's yellow indicator will remain on.
   • If you press the elevator’s operation switch, the doors should close and operate normally.
2. Obstruction Detected:
   • Place an object (such as your test rod) into the protection area.
   • The receiver’s red light should turn on, indicating the detection of an obstruction.
   • The elevator doors should stop moving immediately, entering a forced stop state.
3. Object Removed from Protection Area:
   • Remove the obstruction. The receiver’s red light should turn off.
   • The elevator should resume normal operation when commanded.

Step 4: Perform Sensitivity and Coverage Testing

• Use the test rod to simulate obstructions at different points across the detection zone. Move it vertically and horizontally within the rectangular area.
• The receiver’s red indicator should light up every time the test rod breaks the infrared beams.
• Ensure there are no gaps in the coverage. If gaps are detected, check for alignment issues or dirt blocking the sensors.

Step 5: Verify System Response Time

Test the response time of the light curtain. When an obstruction is detected, the system should respond immediately by stopping the elevator doors. Compare the response time with the specifications provided in the user manual.

Step 6: Maintenance Tips for Long-Term Safety

To keep the light curtain functioning optimally:

• Clean Regularly: Dust and dirt can block sensors. Wipe the emitter and receiver with a soft, lint-free cloth. Avoid abrasive cleaners that could damage the lenses.
• Inspect for Damage: Check for cracks or wear on the casing and brackets. Replace damaged components promptly.
• Schedule Professional Maintenance: While regular checks can be performed by maintenance personnel, annual inspections by certified technicians are recommended.

Common Issues and Troubleshooting

Here are some frequent problems and how to resolve them:

1. Misaligned Sensors: Adjust the emitter and receiver until they are perfectly aligned on the same plane.
2. Blocked Beams: Clean the sensors to remove any obstructions or dirt.
3. Faulty Cables: Replace damaged cables or connectors immediately.

If issues persist, consult the product manual or contact the manufacturer for assistance.

Conclusion

Elevator light curtain safety detection is essential to prevent accidents and ensure smooth operations. By following these clear, step-by-step instructions, even those new to the industry can perform accurate safety checks.
