Kone escalator step chain | Potensi Elevator

Model NO.: POTENSI-013682

Quantity:

Product Description
Application Description

Keywords

Escalator step chain, Step chain, Escalator Mechanical Parts Supplier, High Quality Escalator Mechanical Spare Parts for Sale, Step Chain Assembly, Step Chain for Schindler Escalators, Schindler T133.33, ThyssenKrupp Escalator Step Chain, Thyssen FT722/FT723/FT724, KM5071468G01, 23KV-SF-W 2STRINGS R20, KONE escalator step chain, KM5009350H01, OTIS escalator step chain, DAA26150A, DEE3685363, Escalator spare parts, S650C003, S650C607, KM5229139H01, KM5229139G01, Otis Step Chain ASSY 1000mm 800mm, KM5229139H01

Application

Our escalator step chain is perfectly available for all major escalator brands, especially for Hitachi Elevators, OTIS Elevators, LG Elevators, Hyundai Elevators, Mitsubishi Elevators, ThyssenKrupp Elevators, Fujitec Elevators, Schindler Elevators, KONE Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, KOYO Elevators, SJEC Elevators, BLT Elevators, CANNY Elevators

Basic Info

Brand: KONE
Escalator OEM Parts: YES

Additional Info

Packaging: Export Packing
Transportation: Ocean,Air,Courier Service
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T,Western Union，Credit Card etc.
Incoterm: CFR,CIF
Delivery Time: 10 Days

Product Description

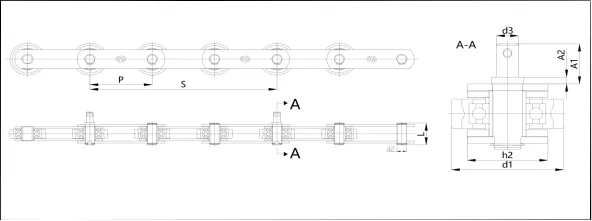

Escalator Step Chain

Parts Number	Pitch	Step Distance	Roller Diameter	Heigh of Inner Chainplate	Diameter of Pin	Length of Hollow Pin	Prolonged end for the pin shaft of the steps			Anti-Pull Load
	P	S	d1	h2	d2	L	Diameterd3	Long		min KN
	mm	mm	mm	mm	mm	mm	mm	A1(mm)	A2(mm)	min KN
T100	100	400	52	70.5	30	58				245
TL131B	131.33	394	76.2	35	12.70	52	12.70	39		90
TL131D	131.33	394	80	35	14.63	56	14.63	31		123
TL131A	131.33	394	80	35	14.63	56	14.63	36		123
TL131C	131.33	394	76.2	35	15	52	15	39		123
THL131A	131.33	394	80	40	18.26	56	17	41	5	150
T131	131.33	394	80	40	14.63	55	14.63	31		180
TH131	131.33	394	80	50	24	55	17	41	5	180
T131A	131.33	394	80	40	14.63	55	14.63	36		180
T131B	131.33	394	80	40	14.63	55	14.63	31		180
F266.66	133.33	266.66	70	40	14.63	55	14.63	31		180
JTH266	133.33	266.66	80	50	24	56.5	18	36	5	220
TL133K	133.33	400	76.2	35	12.7	50	12.7	36		70
TL133M	133.33	400	70	35	12.7	50	12.7	36		70
TL133P	133.33	400	76	35	12.7	51	12.7	31		75
TL133E	133.33	400	76.2	35	12.7	52	12.7	39		90
TL133F	133.33	400	70	35	14.63	56	14.63	31		90
TL133G	133.33	400	76.2	35	12.7	52	12.7	31		90
TL133L	133.33	400	76	40	12.67	51	12.67	31		90
TL133N/N1	133.33	400	70	40	12.67	51	12.67	31		90
TL133B	133.33	400	70	35	14.63	56	14.63	31		90
TL133D	133.33	400	76.2	35	14.63	52	14.63	36		90/125
TL133J	133.33	400	76	35	14.63	52	14.63	31		90/125
TL133H	133.33	400	76.2	35	15	52	15	39		123
TL133A	133.33	400	70	35	14.63	56	14.63	31		125
T133C	133.33	400	80	40	14.63	56	14.63	31		140
STL133	133.33	400	76	40	14.63	55	14.63	31		130/180
T133B	133.33	400	80	40	14.63	56	14.63	31		180
T133D	133.33	400	76.2	40	15	52	15	39		180
T133E	133.33	400	76	40	14.63	55	14.63	31		180
T133	133.33	400	70	40	14.63	55	14.63	31		180
STH133	133.33	400	80	50	24	55	20	36	5	180
TH133	133.33	400	80	50	24	56.5	14.63	36	5	200
JTH133	133.33	400	80	50	24	56.5	18	36	5	220
JTH133C	133.33	400	80	50	14.63	56.5	18	36	5	220
FTH133B1	133.33	400	80	50	24	55	14.63	35	4	225
FTH133B	133.33	400	80	50	24	56.5	18	36	5	225
FTH133J	133.33	400	80	50	24	56.5	18/20	36	5	250
FTH133G	133.33	400	110	55	24	63.5	18	36	5	260
FTH133A	133.33	400	80	55	24	56.5	18	36	5	260
FTH133H	133.33	400	80	55	29	64.5	18	32	3	260
FTH133C	133.33	400	80	55	24	58.5	18	36	5	300
FTH133K	133.33	400	100	65	24	56.5	18	36	5	330
T135.4D2	135.46	406.4	76.2	35	12.7	50	12.7	31		70
T135.4J	135.46	406.4	76.2	35	12.7	48	15	32		70
T135.4-00B	135.46	406.4	76.2	35	12.7	52	15	30		90
T135.4A2	135.46	406.4	76.2	35	15	52	15	30		123
T135.4E	135.46	406.4	76.2	45	20	50.75	15	29.7	4.7	150
T135.4E1	135.46	406.4	76.2	45	20	51	15	30.1	4.9	150
T135.4F	135.46	406.4	76.2	45	25	57	15	28.6	3.6	200
T135.4F1	135.46	406.4	76.2	45	25	54	15	29.2	4	200

Workshop

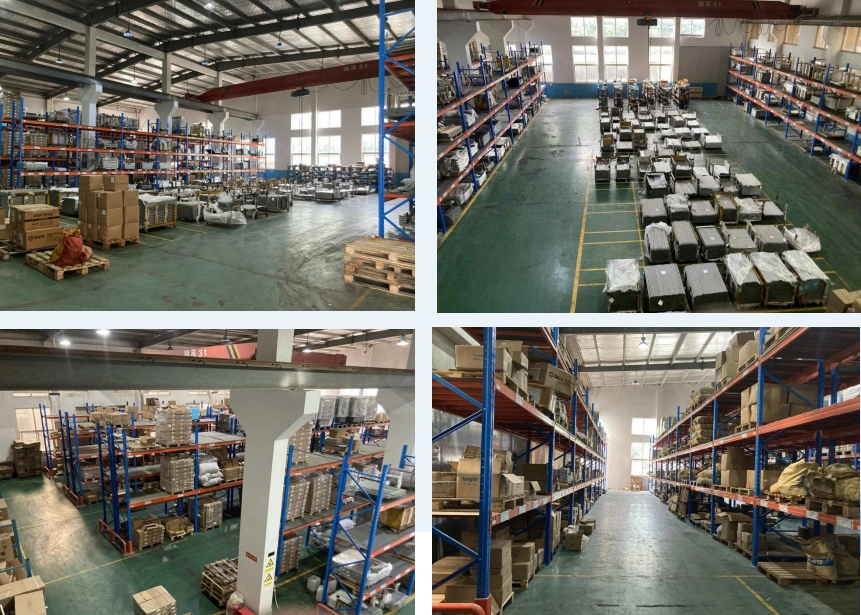

Warehouse

Catalog Download

RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
