friction traction machine elevator
friction traction machine elevator
Model No: WJC-A Series Machines

KDS ELEVATOR TRACTION MACHINE WJC-A Series

Quantity :
add to cart
Contact Now
Model: WJC-A Series Machines
VoltageAC380V
Roping2:1/4:1
WrapSingle/DOUBLE
Capacity630kg~1600kg
Speed
Protection GradeIP40
Ins.ClassF
Traction machine pole32
Starts per hour240 times per hour
RatingS5-40%
Elevator Height


Features

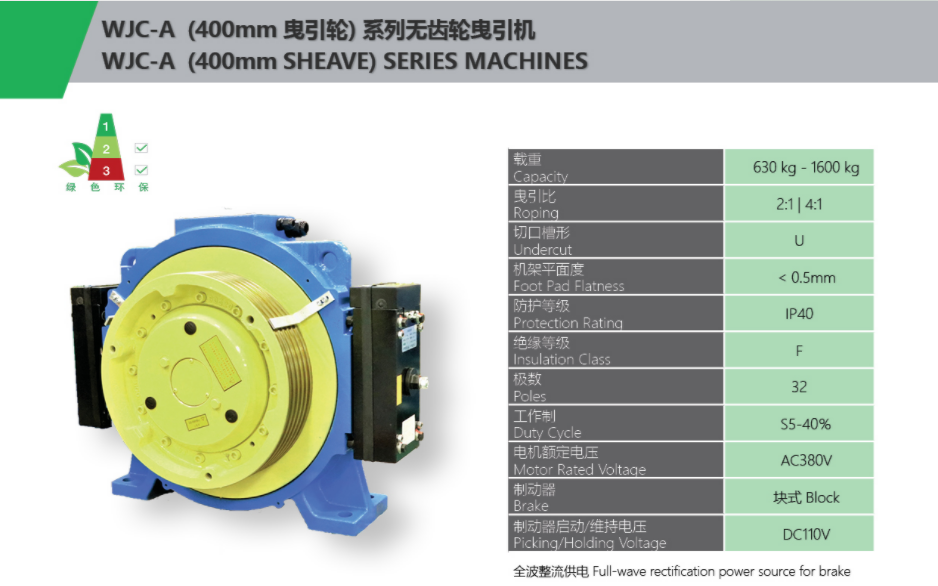

WJC-A Series TRACTION Machines SPECIFICATION

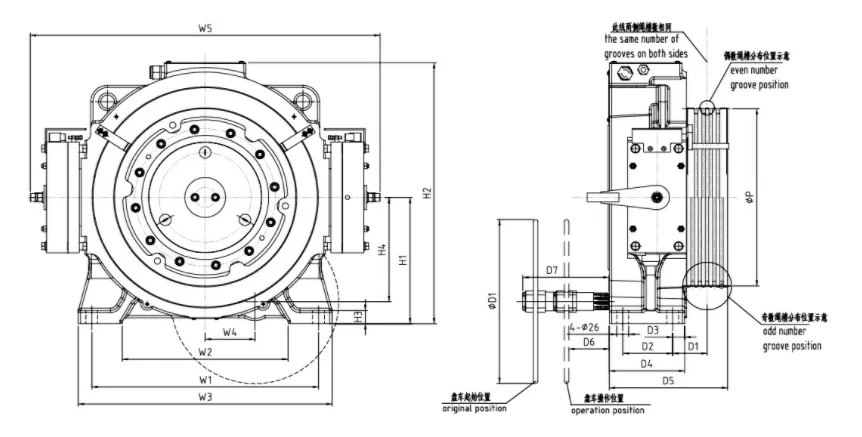

WJC-A Series TRACTION Machines SPECIFICATION DRAWING

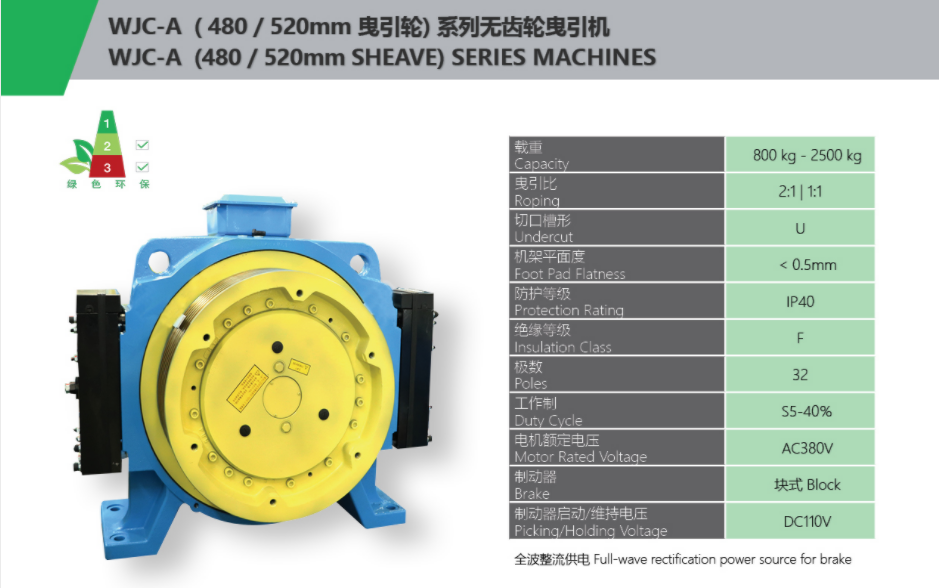

WJC-A Series GEARLESS TRACTION Machines SPECIFICATION

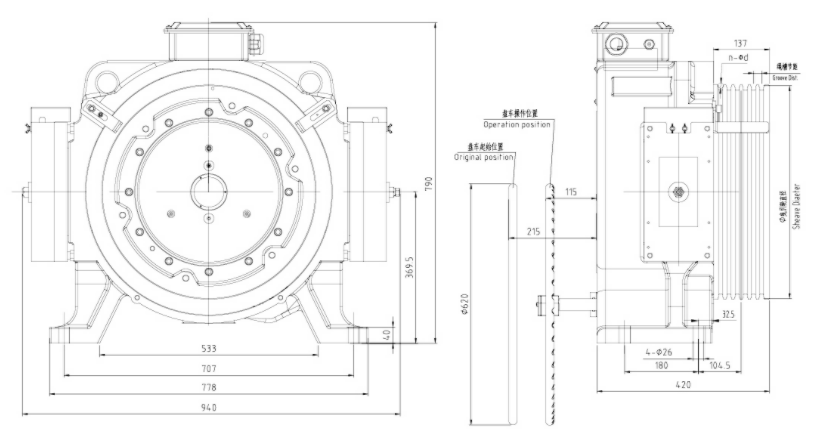

WJC-A Series TRACTION Machines DRAWING

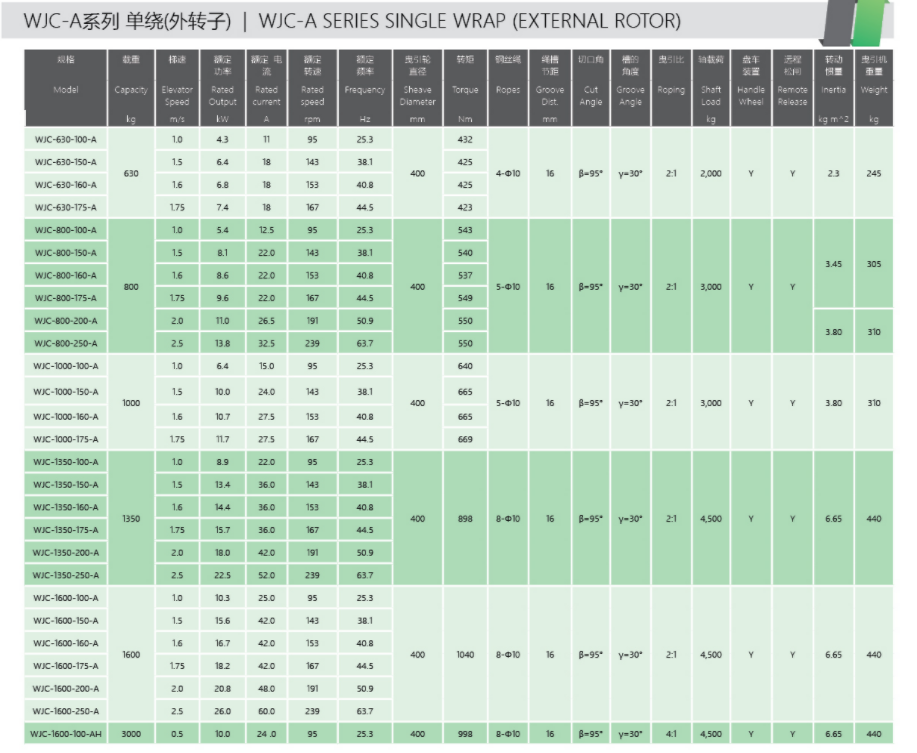

WJC-A Series TRACTION Machines SINGLE WRAP SPECIFICATION

WJC-A Series TRACTION Machines OUTLINE DRAWING DIMENSIONS

Factory Show
——————

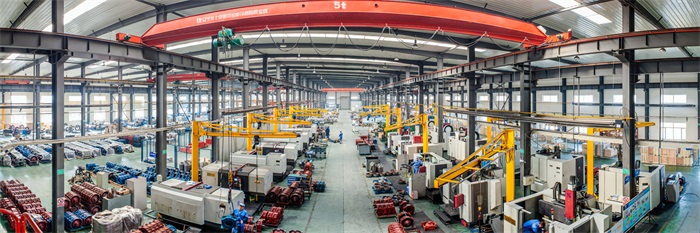

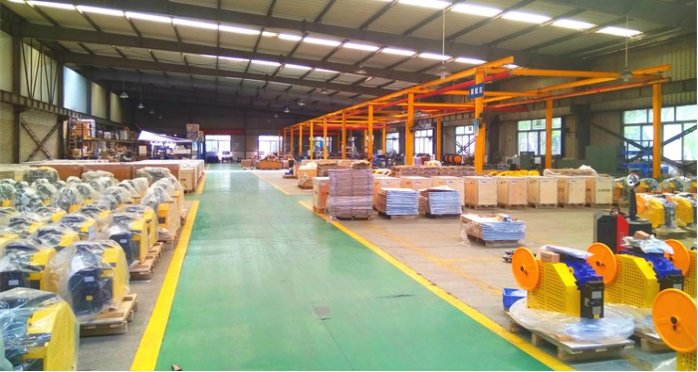

potensi traction machine factorypotensi traction machine stock warehouse

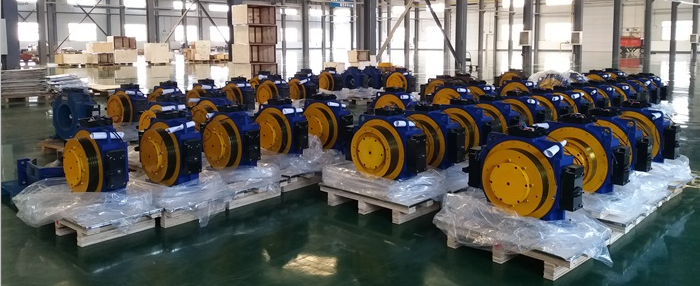

elevator traction machines in stock
RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
