-Potensi-EHC PU Handrail Belt Application-
Potensi-EHC PU Escalator Handrail Belt is Perfectly Available For All Major Escalator Brands, Especially For Hitachi Escalator, Otis Escalator, LG Escalator, Hyundai Escalator, Mitsubishi Escalator, Thyssenkrupp Escalator, Fujitec Escalator, Schin, Escalator, Kone Escalator, Toshiba Escalator, FUJI Escalator, Express Escalator, Sigma Escalator, Koyo Escalator, SJEC Escalator, BLT Escalator, Canny Escalator.
Potensi-EHC PU Escalator Handrail Belt is Perfectly Available For All Major Escalator Brands, Especially For Hitachi Escalator, Otis Escalator, LG Escalator, Hyundai Escalator, Mitsubishi Escalator, Thyssenkrupp Escalator, Fujitec Escalator, Schin, Escalator, Kone Escalator, Toshiba Escalator, FUJI Escalator, Express Escalator, Sigma Escalator, Koyo Escalator, SJEC Escalator, BLT Escalator, Canny Escalator.
-PU Handrail Belt Application Advantage-
①Good oxidation resistance, not easy to aging
②More wear resistant，longer service-life
③More coloful than rubber escalator handrail
TIPS: If you want coloful handrails, PU Material handrail is the one that you need. Because the color of pu material will not fade over time, while the color of rubber material handrail will fade.
①Good oxidation resistance, not easy to aging
②More wear resistant，longer service-life
③More coloful than rubber escalator handrail
TIPS: If you want coloful handrails, PU Material handrail is the one that you need. Because the color of pu material will not fade over time, while the color of rubber material handrail will fade.
-Dimensions of Escalator Handrail Belt-

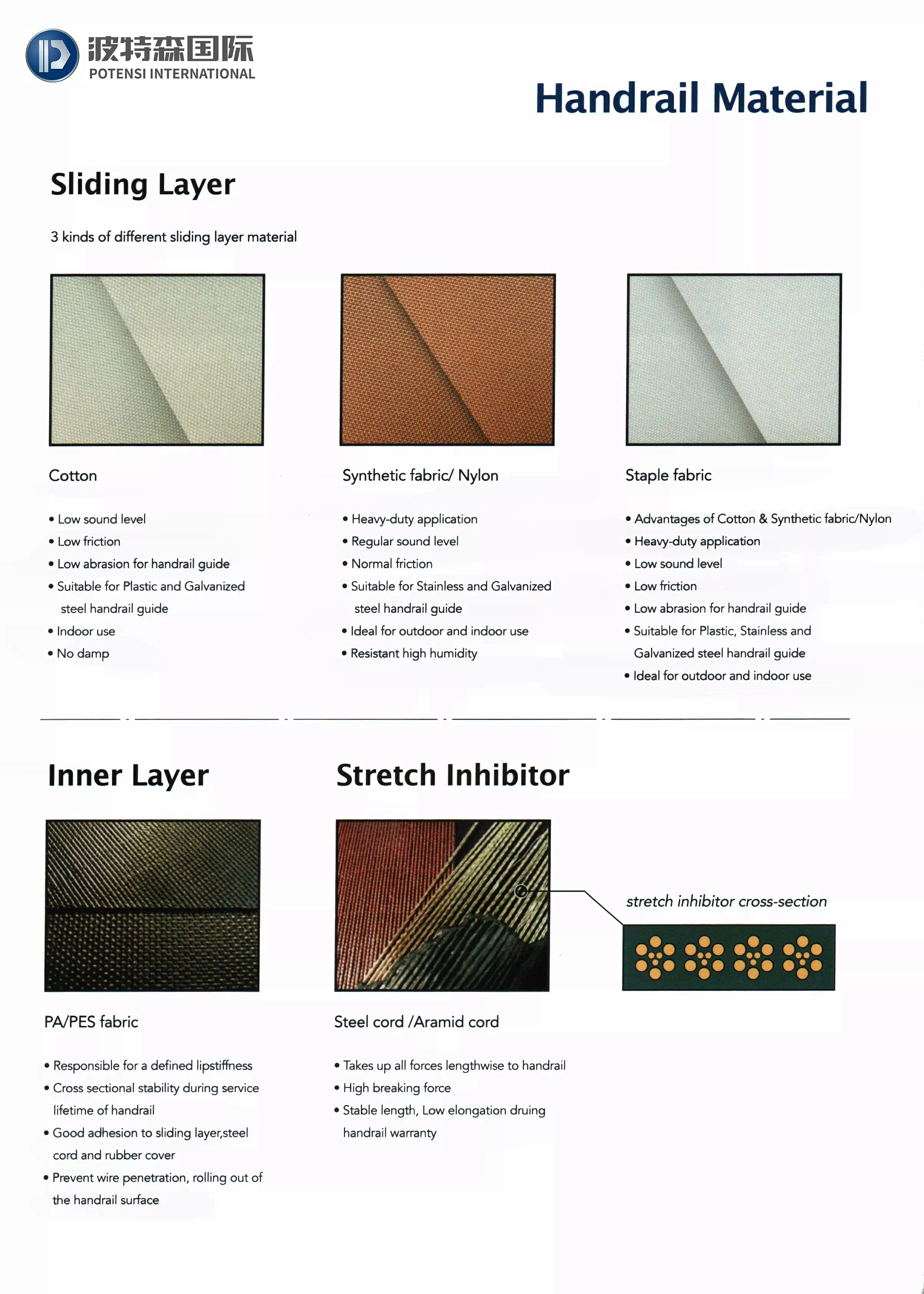

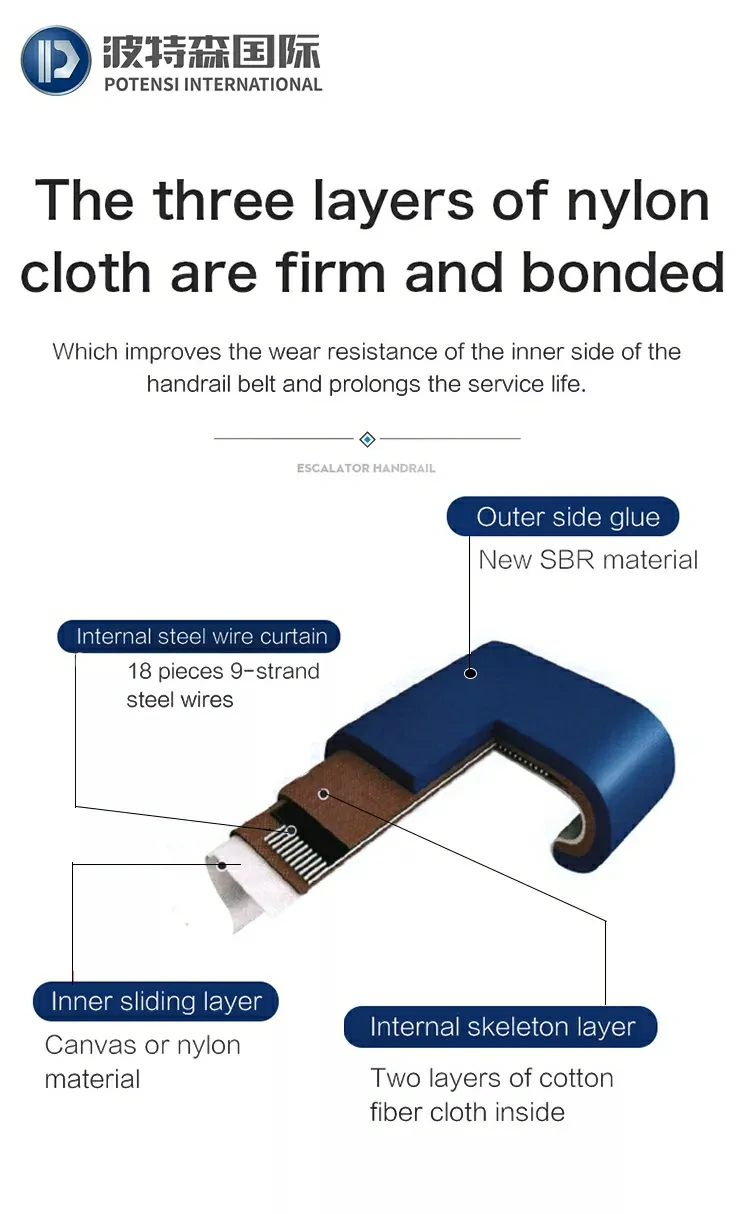

-Handrail Belt Material-
-Different Handrail Belt Joint Types-
| Dimensions of Handrail | |||||||
| C TYPE | V TYPE | ||||||
 | |||||||
| TYPE/SIZE/CODE | Mouth Width(D) | Inner Width(D1) | Total Width(D1) | Inner High(h) | Top Thickness(h1 ) | Top High(h1) | |
| Schineid Fuji | SWE | 33+3-1 | 62±1 | 82±1 | 12±0.8 | 12±1 | 34±1 |
| SDS | 39+3-1 | 62+I | 80±1 | 10.6±0.8 | 9.5±1 | 28.5±1 | |
| Otis Thyssenkrupp Sigmi | Otis | 39+2-1 | 60±1 | 76±1 | 9.5±0.8 | 10±1 | 28±1 |
| Otis15-800 | 38+2-1 | 64±l | 82±1 | 16.5±0.8 | 9.5±1 | 35.5±1 | |
| Mitubshi | J | 41+2-1 | 62±l | 8O±1 | 10±0.8 | 92±1 | 27±1 |
| Hitachi | GRF | 41+2-1 | 63±l | 80±1 | 10.6±0.8 | 10±1 | 27.5±I |
| GRF-1 | 40+2-1 | 63±1 | 82±1 | 11.5±0.8 | 10.4±1 | 31.7±I | |
| Gw | XF | 35+2-1 | 64±l | 82±1 | 14±0.8 | 12±1 | 35±1 |
| Hyundai | W-BT2 | 40+1-0.5 | 64±0.5 | 80±0.5 | 12±0.5 | 10+1-0.5 | 30±0.5 |
| W-BT3 | 39.6+2-1 | 63.5±1 | 79.3±1 | 10.6±0.8 | 10.4±1 | 28.4±1 | |
| LG | LG | 39.5+2-1 | 63.5±1 | 82±1 | 12.5±0.8 | 12±1 | 33±1 |
| LG-1 | 42+2-1 | 64.5±1 | 82±1 | 16.5±0.8 | 12±1 | 36±1 | |
| LG-2 | 36+2-1 | 62±2 | 86±2 | 12 | 12±1 | 32±1 | |
| Fujitec | STD | 40+2-1 | 63+2-0 | 80+0-1 | 10+1.5 | 10+0-1 | 28.5+0-1 |
| Thyssenkrupp | ET-300 | 40+3-1 | 68-2 | 88+4-2 | 15±1 | 12 | 35±1 |
| Kone | ECO-3000 | 37.5+2,5 | 62.8+1.5 | 79.2+2.5 | 10.6±0.5 | 9.5+1-0.5 | 28.2+1.5-1 |
| HD560359 | 42±1.5 | 68±l | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| HD967826 | 42±1.5 | 68±I | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| PTK2146675 | 37.5-15 | 62.8+1.5 | 79.2+2.5 | 10.6±0,5 | 9,5+1-0.5 | 28.15+1.5-1 | |
-Handrail Belt Material-

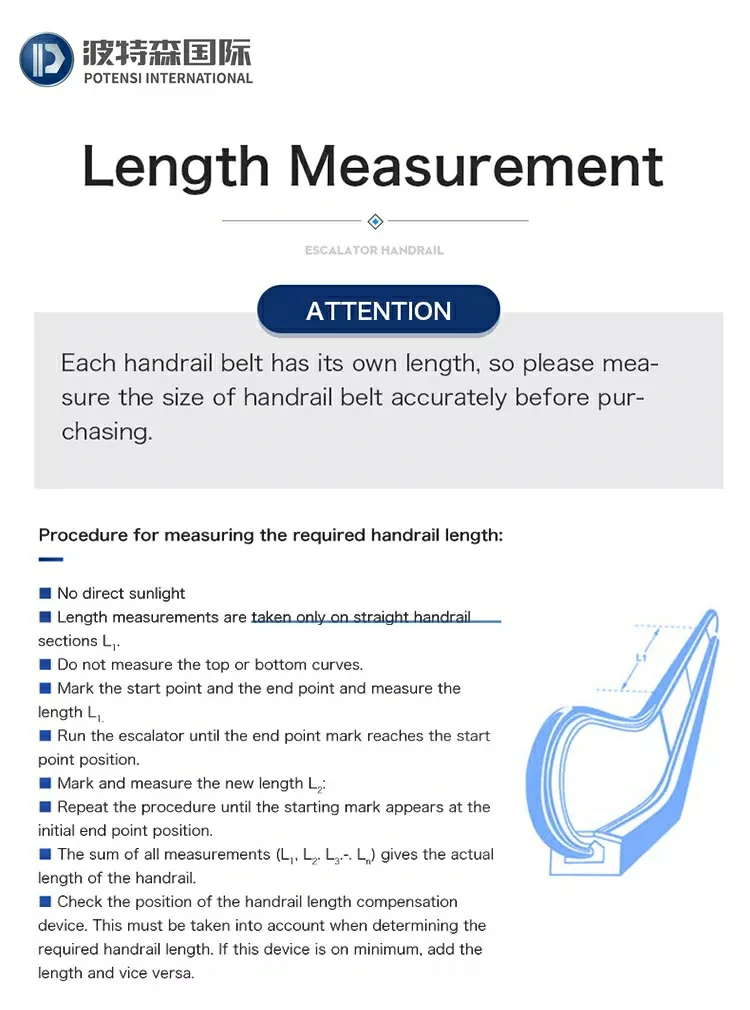

-How to measure the length of handrail belt？-
