Potensi-Escalator Handrail Belt
—————
Potensi helps you find the most cost-effective escalator handrail belt
With more than 17 years of experience in escalator production, Potensi has also cooperated with many handrail production factories. Therefore, Potensi also selected the most cost-effective rubber handrail products and TPU handrail products for everyone in the escalator field.
Export 300,000 meters of handrails to the world every single year
As a professional escalator handrail supplier in China, Potensi tries his best to supply quality products to the world. We have many escalator handrails clients around the world, most of them are dealers.
Escalator handrail belt jointing tools and materials available
If you have an escalator handrail business or plan to deal with handrail belts, you want to cut it down or jointing them to serve your clients requirements, become Potensi's VIP Client, Potensi could provide you the jointing tools and materials. and the most important point-Technical support
Products Introduction
—————

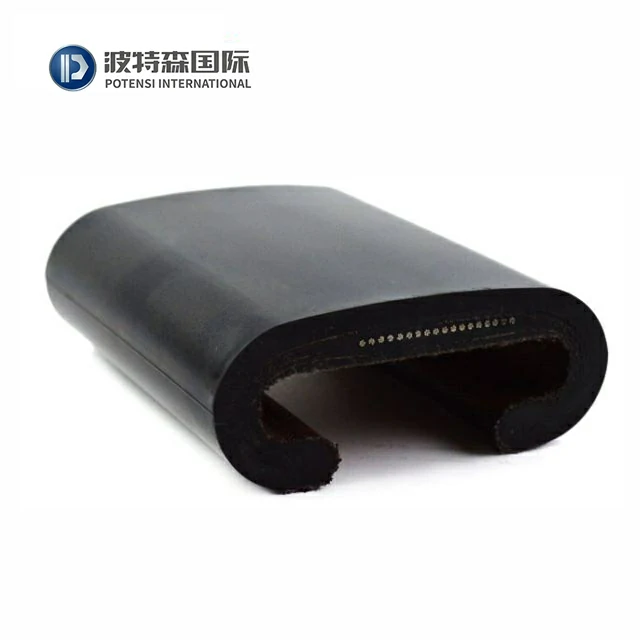

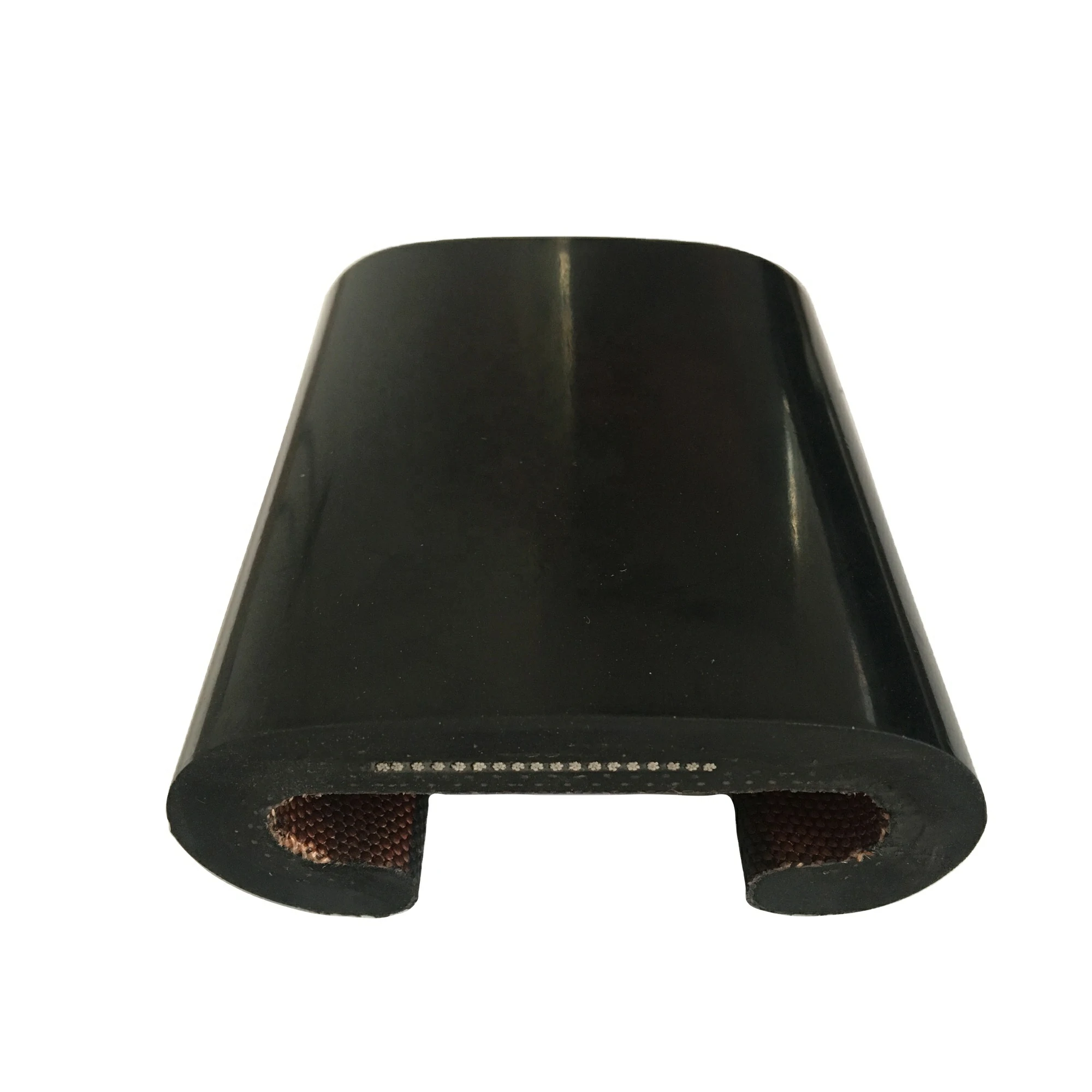

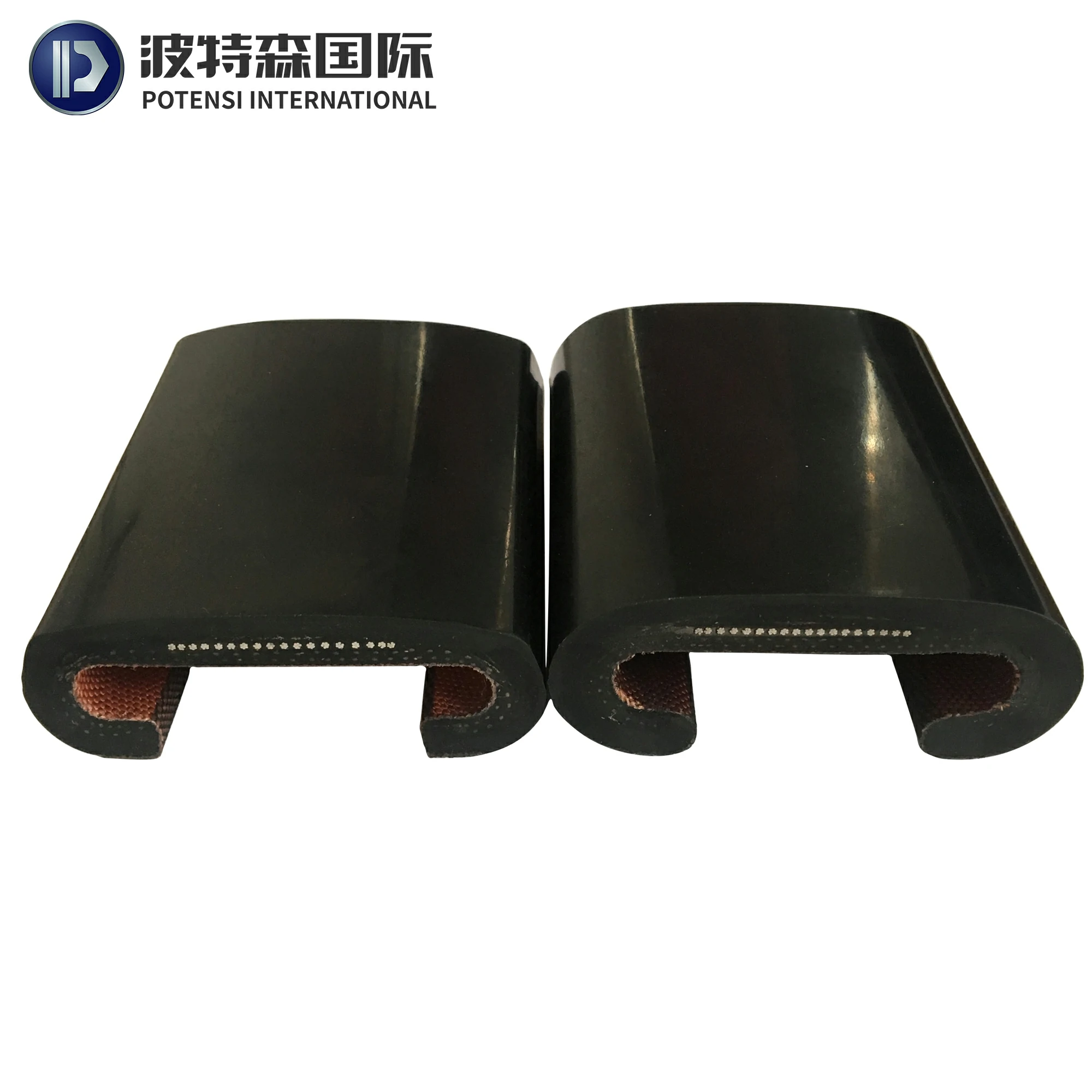

Rubber Escalator Handrail Belt
—————
Potensi helps you find the most cost-effective escalator handrail belt
With more than 17 years of experience in escalator production, Potensi has also cooperated with many handrail production factories. Therefore, Potensi also selected the most cost-effective rubber handrail products and TPU handrail products for everyone in the escalator field.
Export 300,000 meters of handrails to the world every single year
As a professional escalator handrail supplier in China, Potensi tries his best to supply quality products to the world. We have many escalator handrails clients around the world, most of them are dealers.
Escalator handrail belt jointing tools and materials available
If you have an escalator handrail business or plan to deal with handrail belts, you want to cut it down or jointing them to serve your clients requirements, become Potensi's VIP Client, Potensi could provide you the jointing tools and materials. and the most important point-Technical support
Products Introduction
—————
Rubber Escalator Handrail Belt
PU Escalator Handrail Belt
Size reference table
| Dimensions of Handrail | |||||||
| C TYPE | V TYPE | ||||||
 | |||||||
| TYPE/SIZE/CODE | Mouth Width(D) | Inner Width(D1) | Total Width(D1) | Inner High(h) | Top Thickness(h1 ) | Top High(h1) | |
| Schindler Fuji | SWE | 33+3-1 | 62±1 | 82±1 | 12±0.8 | 12±1 | 34±1 |
| SDS | 39+3-1 | 62+I | 80±1 | 10.6±0.8 | 9.5±1 | 28.5±1 | |
| Otis Thyssenkrupp Sigma | Otis | 39+2-1 | 60±1 | 76±1 | 9.5±0.8 | 10±1 | 28±1 |
| Otis15-800 | 38+2-1 | 64±l | 82±1 | 16.5±0.8 | 9.5±1 | 35.5±1 | |
| Mitubshi | J | 41+2-1 | 62±l | 8O±1 | 10±0.8 | 92±1 | 27±1 |
| Hitachi | GRF | 41+2-1 | 63±l | 80±1 | 10.6±0.8 | 10±1 | 27.5±I |
| GRF-1 | 40+2-1 | 63±1 | 82±1 | 11.5±0.8 | 10.4±1 | 31.7±I | |
| Gw | XF | 35+2-1 | 64±l | 82±1 | 14±0.8 | 12±1 | 35±1 |
| Hyundai | W-BT2 | 40+1-0.5 | 64±0.5 | 80±0.5 | 12±0.5 | 10+1-0.5 | 30±0.5 |
| W-BT3 | 39.6+2-1 | 63.5±1 | 79.3±1 | 10.6±0.8 | 10.4±1 | 28.4±1 | |
| LG | LG | 39.5+2-1 | 63.5±1 | 82±1 | 12.5±0.8 | 12±1 | 33±1 |
| LG-1 | 42+2-1 | 64.5±1 | 82±1 | 16.5±0.8 | 12±1 | 36±1 | |
| LG-2 | 36+2-1 | 62±2 | 86±2 | 12 | 12±1 | 32±1 | |
| Fujitec | STD | 40+2-1 | 63+2-0 | 80+0-1 | 10+1.5 | 10+0-1 | 28.5+0-1 |
| Thyssenkrupp | ET-300 | 40+3-1 | 68-2 | 88+4-2 | 15±1 | 12 | 35±1 |
| Kone | ECO-3000 | 37.5+2,5 | 62.8+1.5 | 79.2+2.5 | 10.6±0.5 | 9.5+1-0.5 | 28.2+1.5-1 |
| HD560359 | 42±1.5 | 68±l | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| HD967826 | 42±1.5 | 68±I | 88±1.5 | 15±1 | 10±1 | 35±1 | |
| PTK2146675 | 37.5-15 | 62.8+1.5 | 79.2+2.5 | 10.6±0,5 | 9,5+1-0.5 | 28.15+1.5-1 | |
Common sense of Escalator handrails belt
Driving principle of handrail belt:
The handrail belt is located on the top surface of the handrail device, which runs synchronously with the steps, and is a belt-shaped part for passengers to hold. Its operation is to drive the handrail belt drive sprocket on the main shaft to drive the handrail belt friction wheel. Through the friction between the friction wheel and the handrail belt, the handrail belt runs at a speed synchronized with the steps. At this time, the handrail belt and its contacting roller assembly are required. The friction between them is as large as possible, and sufficient driving force of the handrail belt has been provided. Moreover, the contact surface of the driving handrail belt and the contact surface of the guide rail when the handrail belt moves are the same surface sliding layer.
Nowadays there are rubber and Polyurethane(PU) materials for escalator handrails in the market. What's the difference between these two types?
The handrail belt is located on the top surface of the handrail device, which runs synchronously with the steps, and is a belt-shaped part for passengers to hold. Its operation is to drive the handrail belt drive sprocket on the main shaft to drive the handrail belt friction wheel. Through the friction between the friction wheel and the handrail belt, the handrail belt runs at a speed synchronized with the steps. At this time, the handrail belt and its contacting roller assembly are required. The friction between them is as large as possible, and sufficient driving force of the handrail belt has been provided. Moreover, the contact surface of the driving handrail belt and the contact surface of the guide rail when the handrail belt moves are the same surface sliding layer.
Nowadays there are rubber and Polyurethane(PU) materials for escalator handrails in the market. What's the difference between these two types?
Rubber escalator handrail: Lower price, shorter service-life than PU material of the handrail.
Famous brand: Semperit
PU escalator handrail: Higher price，longer service-life and more colorful than rubber escalator handrail.
Famous brand: EHC
TIPS: If you want colorful handrails, PU Material handrail is the one that you need. Because the color of PU material will not fade over time, while the color of rubber material handrail will fade.
RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without a machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you need?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without a machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you need?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
