Brand: Hyundai

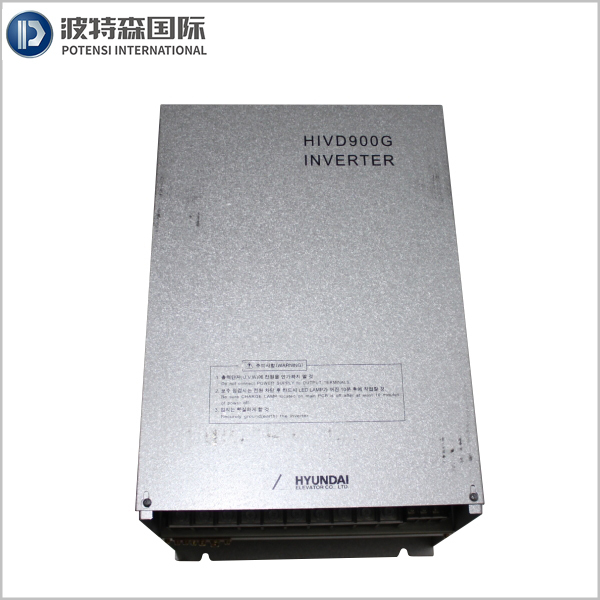

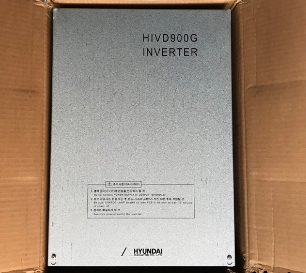

Products:Hyundai elevator inverter HIVD 900G
OEM Parts: No
Power 5.5kw/7.5kw/11kw/15kw/22kw/30kw
Input: AC, 3-phase,380v-440V,50/60Hz
Output: Rated current 64A Power(kw):30kw
INPUT TERMINALS 900G, 900GS( Induction Motor) ITEM | LABEL | NAME | DESCRIPTION | REMARK |
STVF 1&2 | STVF 3&5, FI 4 |
Control Input Contact | CM | Input Common | Common terminal of contact input terminals | CN 12 |
UP | Up operation | ON : Up, OFF : Stop |
DN | Down operation | ON : Down, OFF : Stop |
RST | ALARM RESET | External input of Reset signal |
SP 1 | Sparel input | Sparel input |
LD | PLDL sensor input | Elevator going down is forced to stop if this signal is input |
INIC | Initial operation | This signal is ON when the elevator operates initial mode |
HOU | Upper vane sensor | Input signal of upper vane sensor |
HOD | Lower vane sensor | Input signal of lower vane sensor |
ITH | Inverter thermal sensor | Input signal of inverter thermal sensor |
LU(X 1) | Selective input 1 | Multi-purpose control input selection – Multi-speed selection, – DI Torque input, – Torque Bias switch _Pre-Excitement signal, – Speed limit switch | PLUL sensor input |
MU(X2) | Selective input 2 | Door zone sensor input |
HU(X3) | Selective input 3 | PLUH sensor input |
HD(X4) | Selective input 4 | PLDH sensor input |
MD(X5) | Selective input 5 | Sparel input |
AT(X6) | Selective input 6 | Auto operation signal |
Then-nistor Input | THI | Motor Then-nistor Input Terminal | Terminals for motor thermistor | TB 1 |
TI |
Encoder input | PGM | Encoder Common | Ground common terminal of PGP, PA, PB | TB 2 |
PGP | Encoder source | Output (+15Vdc) |
PA | Encoder A phase | Detection of the motor speed, Detection Terminal of the rotation direction |
PB | Encoder B phase |
OUTPUT TERMINALS 900G, 900GS( Induction Motor)
ITEM | LABEL | NAME | DESCRIPTION |
STVF 1&2 | STVF 3&5, FI 4 |
Control Output Contact | CME | Transistor Output Common | Common terminal for Yl, Y2, and Y3 |
Y1 | Open collector output 1 | Zero Speed | Run | Allowable Load : 27Vdc 20mA (MAX) |
Y2 | Open collector output 2 | Speed Agree | Zero Speed |
Y3 | Open collector output 3 | Run | Torque Answer |
30B | INV. Error Output | ►30B-30C OPEN : Fault ►30B-30C CLOSE : Normal | Contact Capacity : 220Vac 500mA |
30C | INV. Error Common |
Analog Output (Option Bd) | GND | Analog Common | Inverter inspection or test using Optional Board |
A01 | Analog output 1 |
A02 | Analog output 2 |
A03 | Analog output 3 |
A04 | Analog output 4 |
-Hyundai elevator inverter HIVD 900G Shipping Reference-


-Factory and Warehouse- -Additional Info-
Packaging: Export Packing
Transportation: Fedex, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western union, Paypal, L/C, Credit Card and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally
-Related Products-
We Can Supply Hyundai Inverter of the Following Models:
Hyundai Elevator Inverter: WB100GT-11H,WB100GT-15H,WB100GT-22H,HIVD700G,HIVD700GS, HIVD700GT,HIVD910GT,HIVD910SS,N700E-075HF,N700E-110HF.
