Model NO.: AS380 4T05P5
Minimum order quantity:: 1

Quantity:

Product Description
Application Description

-Step Elevator Integrated Controller AS380 4T05P5 Application-

Step Elevator Integrated Controller AS380 4T05P5 is the standard drive for the monospace system, it can be installed for both synchronous and asynchronous motor. Step Inverter is applicable for residential lift, goods lift, car lift, ramp elevator, etc.

Main Features：
1. The elevator integrated drive and controller is designed with closed loop vector controller for higher performance.
2. Zero-speed torque compensation system without load weighing device helps save cost.
3. New PWM dead-zone compensation technology is conducive to energy conservation.
4. Dynamic PWM carrier modulation technology ensures reduced motor noise.
5. The elevator integrated drive and controller is suitable for both synchronous and asynchronous motor.
6. Dual 32-bit embedded microprocessor.
7. Incremental encoder is employed to control synchronous motor.
8. This product is applicable for residential lift, goods lift, car lift, ramp elevator, etc.

-Product Description-

Item	Step elevator integrated controller AS380 4T05P5
Phase number voltage frequency	200V: single-phase 220 – 240V, 50/60Hz 400V: three-phase 380/400/415/440/460V, 50/60Hz
Max accessible floor	2-64 floors for the single elevator
Elevator running speed	54.00m/s
Units under Group control	58
Communication mode	CAN bus serial communication
Control mode	PG card vector control
Startup torque	150% 0Hz(PG card vector control)
Overload capacity	When zero speed,150% , when <3Hz,160%, when >3Hz,200%
Applicable encode	SIN/COS, Endat, ABZ incremental, Resolver
CAN communication port	3 channel(duplex or group control, communication between car and outside, community monitoring)
LCD in Chinese and English	Menus at each level
Protection grade	IP20
Cooling mode	Force air-cooling

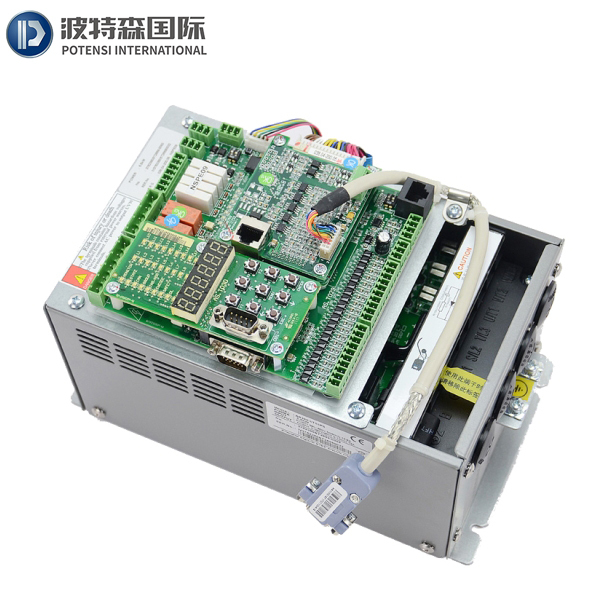

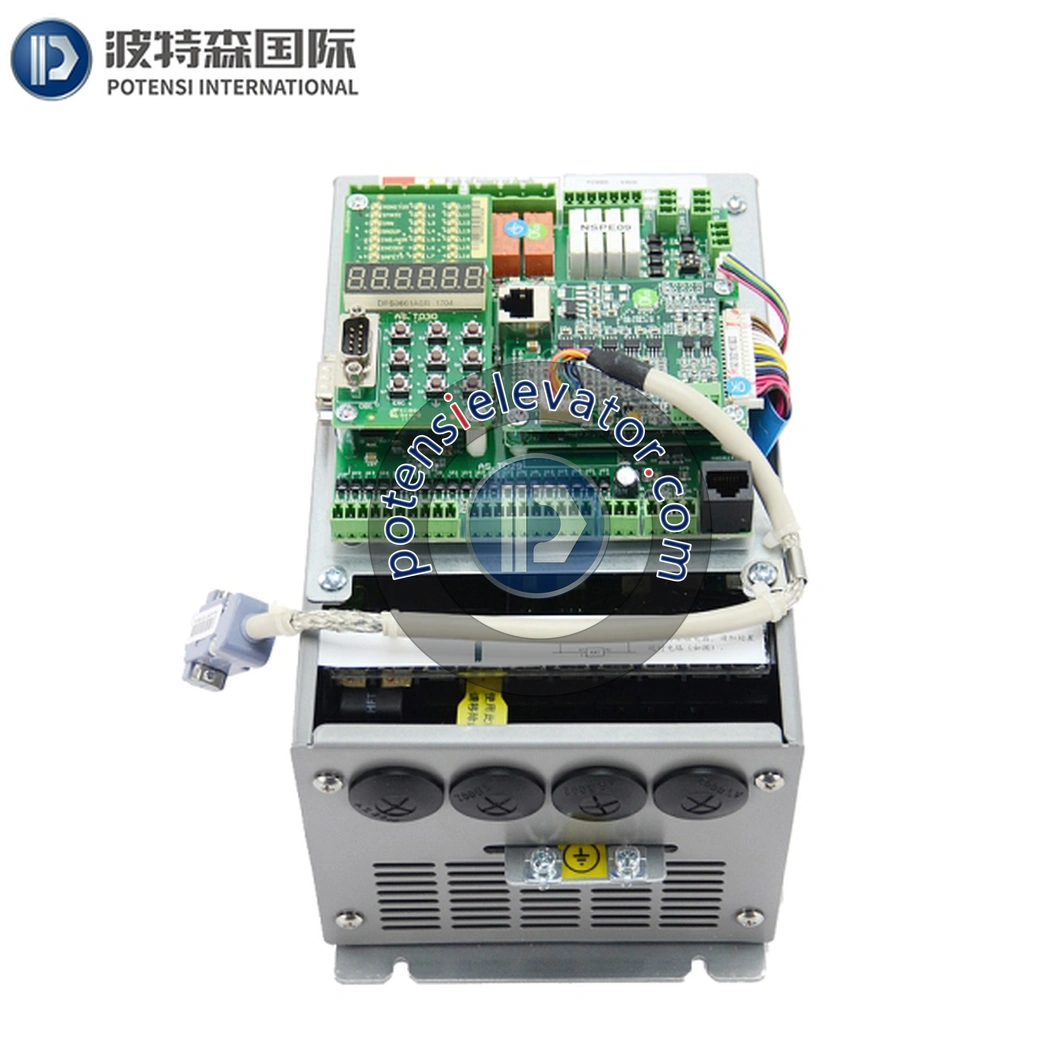

-Step Elevator Integrated Controller AS380 4T05P5 Unpacking Pictures-

-Factory and Warehouse-

Click to Download Catalogue here

-Additional Info-

Packaging: Export Packing
Transportation: FedEx, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western Union, Paypal, L/C, Credit Card, and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally

-Related Products-

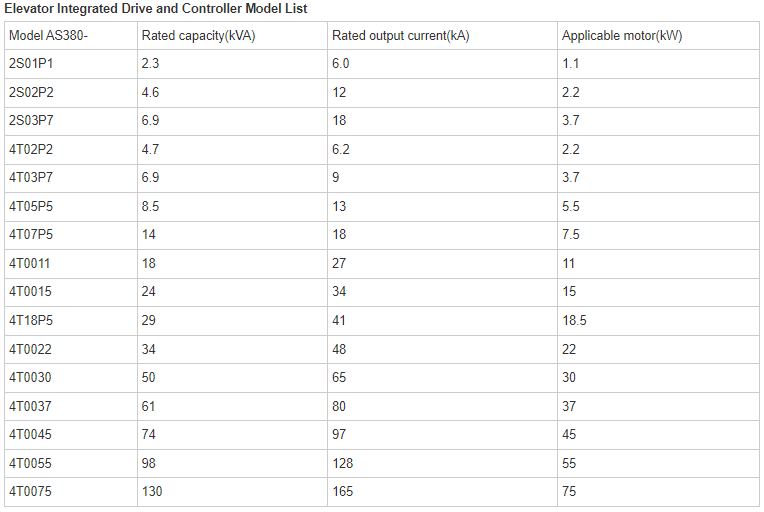

We Can Supply Step Inverter of the Following Models:
Step Elevator Inverter AS380 2S01P1,2S02P2,2S03P7,4T02P2,4T03P7,4T05P5,4T07P5,4T0011,4T0015,4T18P5,4T0022,4T0030,4T0037,4T0045,4T0055,4T0075

-RFQ-

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
