1、 Purpose:
The machine is applicable to elevator car, driving operation room, purification clean room, laboratory, production workshop, corridor, distribution box, instrument panel and other places as well as air conditioning equipment for heat dissipation.

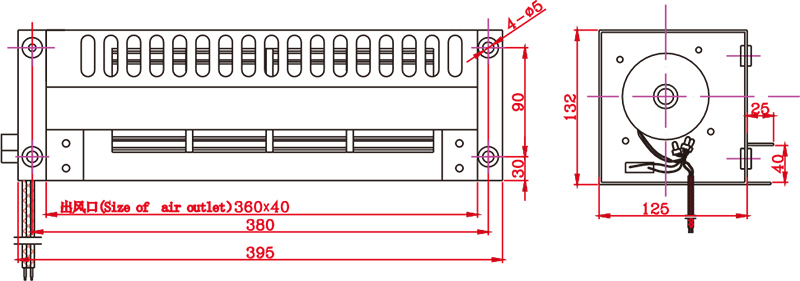

2、 Dimensions
Air outlet size: 360 × forty
Installation size: 380
3、 Precautions:
1. The operating environment shall not be too wet. It is required to be waterproof and drench proof.
2. Do not clean or wipe under working conditions (in use) to prevent personal injury accidents.
3. It must be used according to the specified working voltage to prevent damage to the fan.
4. If the power cord of fan and fan is damaged, it must be sent to the manufacturer or professional personnel for maintenance and replacement.
5. The fixed wiring for installing the appliance must be equipped with power disconnection devices with an opening distance of at least 3mm from all pole contacts.
Technical Parameter
| 型号 Model | 电压V Voltage | 频率Hz Freq. | 电流A Current | 功率W Power | 噪音dB Noise | 风量M³/min Airflow | 转速RPM Speed | 风叶尺寸mm Blade Size | 风叶材质 Blade Material | 顔色 Color |
| GYFB-9B-2单速 | AC110/220/230 | 50/60 | 0.09/0.11 | 25 | ≤45 | 5.5 ± 0.5 | 1200 ±100 | Φ91 ×266 | GFAS | ■Black ■Grey ■Cream |
| Aluminium Alloy | ||||||||||
| GYFB-9B-2双速 | AC110/220/230 | 50/60 | 0.09/0.11 | 快：25 | ≤45 | 快：5.5 ± 0.5 | 快：1200 ±100 | Φ91 ×266 | GFAS | ■Black ■Grey |
| Aluminium Alloy |
RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
