Kone Elevator Gearless Traction Motor Machine MX18 | Potensi Elevator

-Kone Elevator Traction Machine MX18 Application-

Kone Elevator Gearless Traction Motor Machine MX18 is an EcoDisc motor designed for the replacement of the MX 18, and can also be applied for elevator installed with the machine room. It is the largest of the NMX lineup. It Designed to Work in Tandem with the V3F16ES, V3F16L, and KDL16L Kone Elevator Inverter To Provide a Machine Room-Less (MRL) Elevator System.

-Product Description-


Brand: Kone
Products:Kone Elevator Traction Machine MX18
OEM Parts: No
Model: MX18


Roping	2:1
Maximum Rated Load	1800KG
Speed	1.0-4.0m/s
Sheave Diameter	600mm / 650mm / 690mm / 750mm
Power	7.1-38.1kW
Groove Numbers	8 / 9 / 13
Rope Diameter	8mm / 10mm / 13mm
Maximum Lifting Height	180m
Capacity	1275-2000kg

-Installation Position-

MX18 without direction wheel
--Installation position:
Itshould be installed on I-beam load-bearing beam or machine room floor.
--The schematic diagram is as follows:

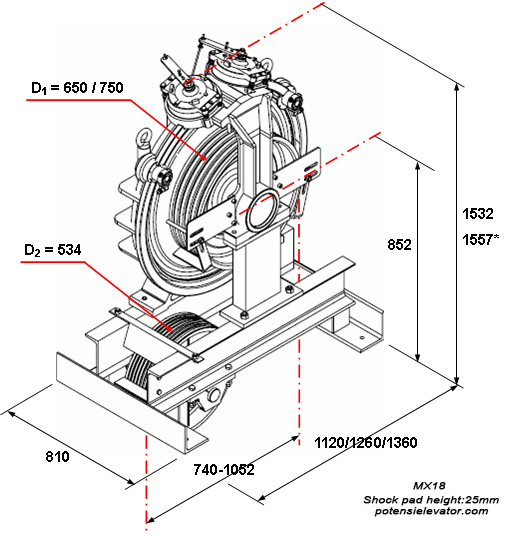

MX18 with direction wheel
--Installation position:
It should be installed on I-beam load-bearing beam.
--The schematic diagram is as follows:

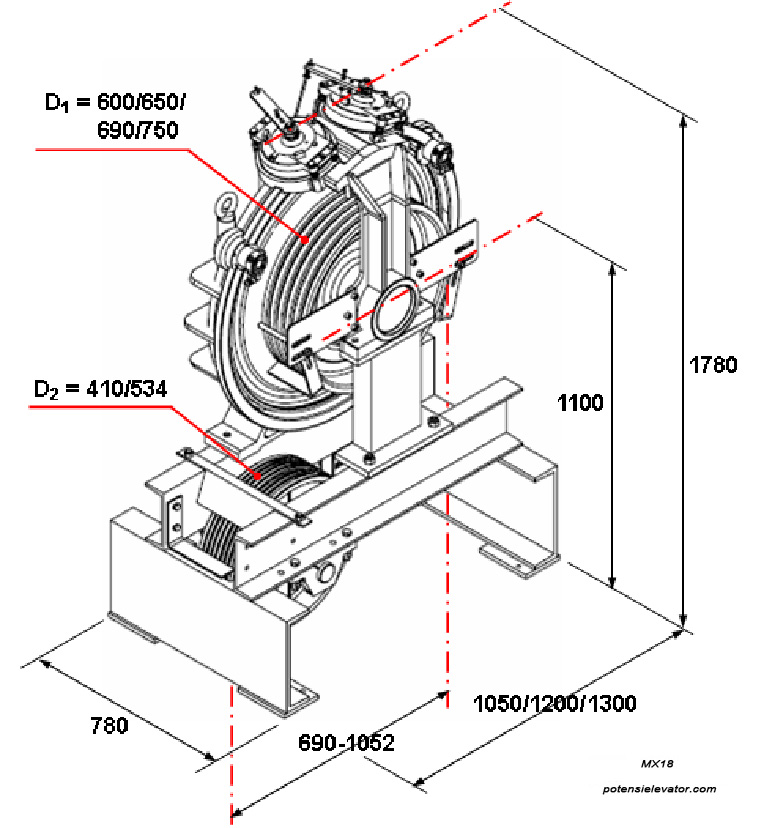

MX18 with direction wheel
--Installation position:
It should be Installed on the machine room floor or I-beam load-bearing beam.
--The schematic diagram is as follows:



Please Note: In order to prevent inconvenient disassembly and assembly of the brake, I-beam load-bearing beams should be laid on the base of the MX18 traction machine with such a structure, and attention should be paid to the height of the machine room.
