KONE Elevator Apollo ARD Elevator Automatic Rescue Device TPS-15 | Potensi Elevator

KONE Elevator Apollo ARD Elevator Automatic Rescue Device TPS-15 | Potensi Elevator

Model NO.: TPS-15

Quantity:

Product Description

-Keywords-

Elevator ARD TPS-15, ARD For Elevators, ARD TPS-15, ARD Controller Elevator, Apollo ARD TPS-15, Elevator ARD Emergency, ARD Apolo, ARD Ascensor, ARD 11kw, Elevator Auto Rescue Device, Elevator Automatic Rescue Device TPS-15, Elevator Rescue Device TPS-15, Elevator ARD Automatic Rescue Device, Elevator Emergency Rescue Device, Automatic Rescue Device Elevator, Elevator Apollo ARD TPS-15

We are the wholesaler of the Apollo ARD TPS-15, all of them are supplied directly by the factory. We sincerely looking for cooperation with elevator parts dealers or Maintenance companies from all over the world. Potensi is looking forward to working with you in the near future.

-Apollo ARD Application-

Our KONE Elevator Apollo ARD TPS-15 is Perfectly Available for KONE Elevator all Models, such as KONE3000 Monospace, KONE3000 SMonospace, KONE 3000EMonospace，KONE 3000XMonospace.

-Product Description-

Brand: Apollo
Products： Apollo ARD Elevator Auto Rescue Device TPS-15
OEM Parts: No
Model:TPS-15

Model	TPS-11		TPS-15	TPS-25	TPS-39	TPS-45	TPS-60	TPS-100
Capacity	5.5 KW		7.5 KW	15KW	18KW	22KW	25KW	32KW
AC Input	380Vac / 415Vac +/- 20% Three Phase Input. 50/60Hz ± 10%
DC Voltage	36Vdc	48Vdc	60Vdc	72Vdc	96Vdc	120Vdc	144Vdc	180Vdc
DC Voltage	12V/7Ah ×3	12V/7Ah ×4	12V/7Ah ×5	12V/7Ah ×6	12V/7Ah ×8	12V/7Ah ×10	12V/7Ah ×12	12V/7Ah ×15
Charger Type	Controlled Rectifier CVCC
Charging Time	10 Hours for 90% of Full Battery Capacity
Technology	IGBT based PWM Sine Wave
Output Voltage	380Vac / 415Vac Three Phase 50/60Hz ± 0.1Hz
Efficiency	85%
Overload	105% continuous
Harmonic Distortion	<3% on Linear load
Crest Factor	4:1
Power Factor	0.8
Phase Displacement	120° ± 1°
LCD Display	Start ARD when Black out Charging Battery Battery Full Over Load Open on level
Protection	Output Overload & Short circuit, DC Under & Over Voltage

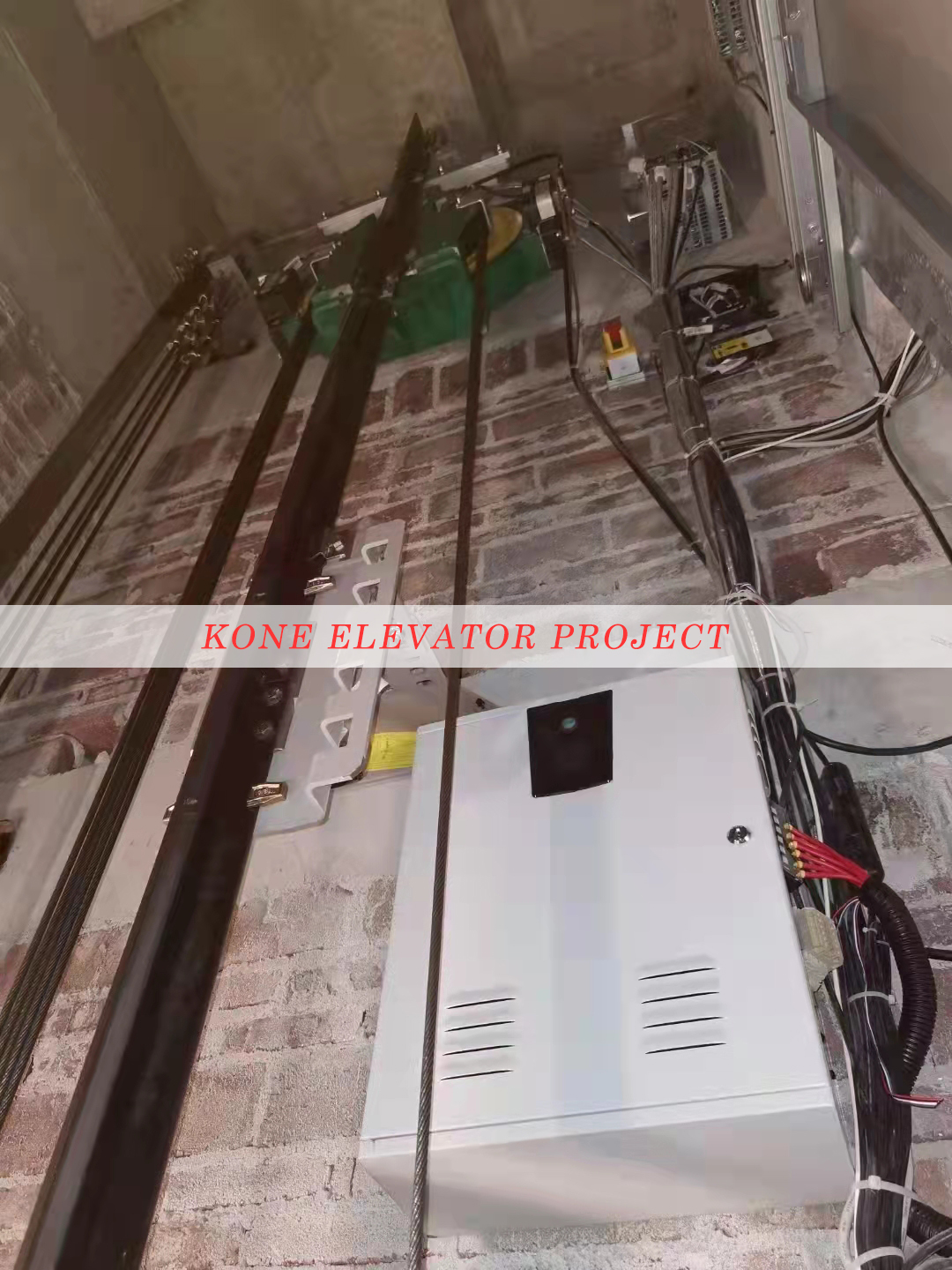

-Apollo ARD Project Reference-

-Apollo ARD Shipping Reference-

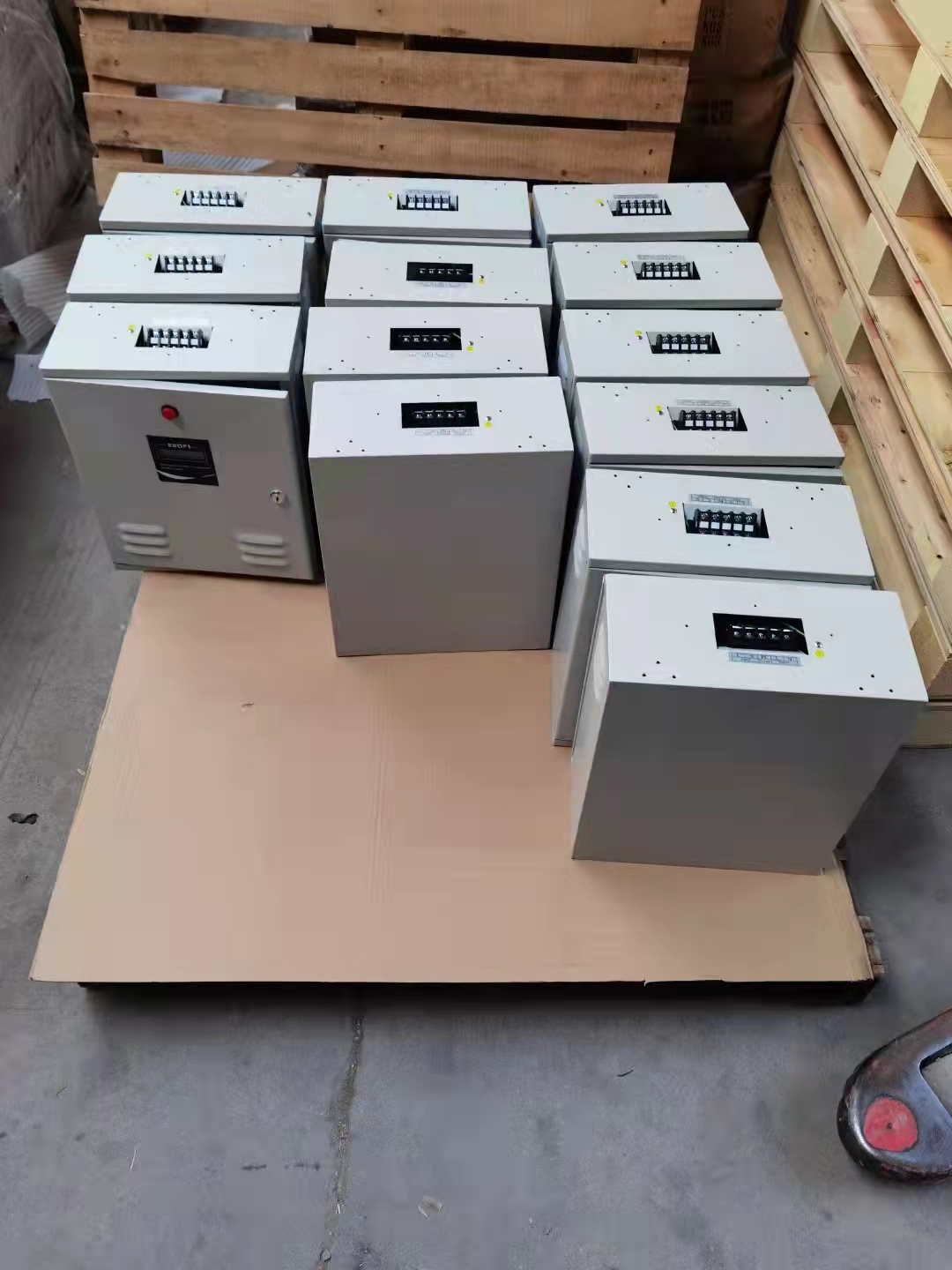

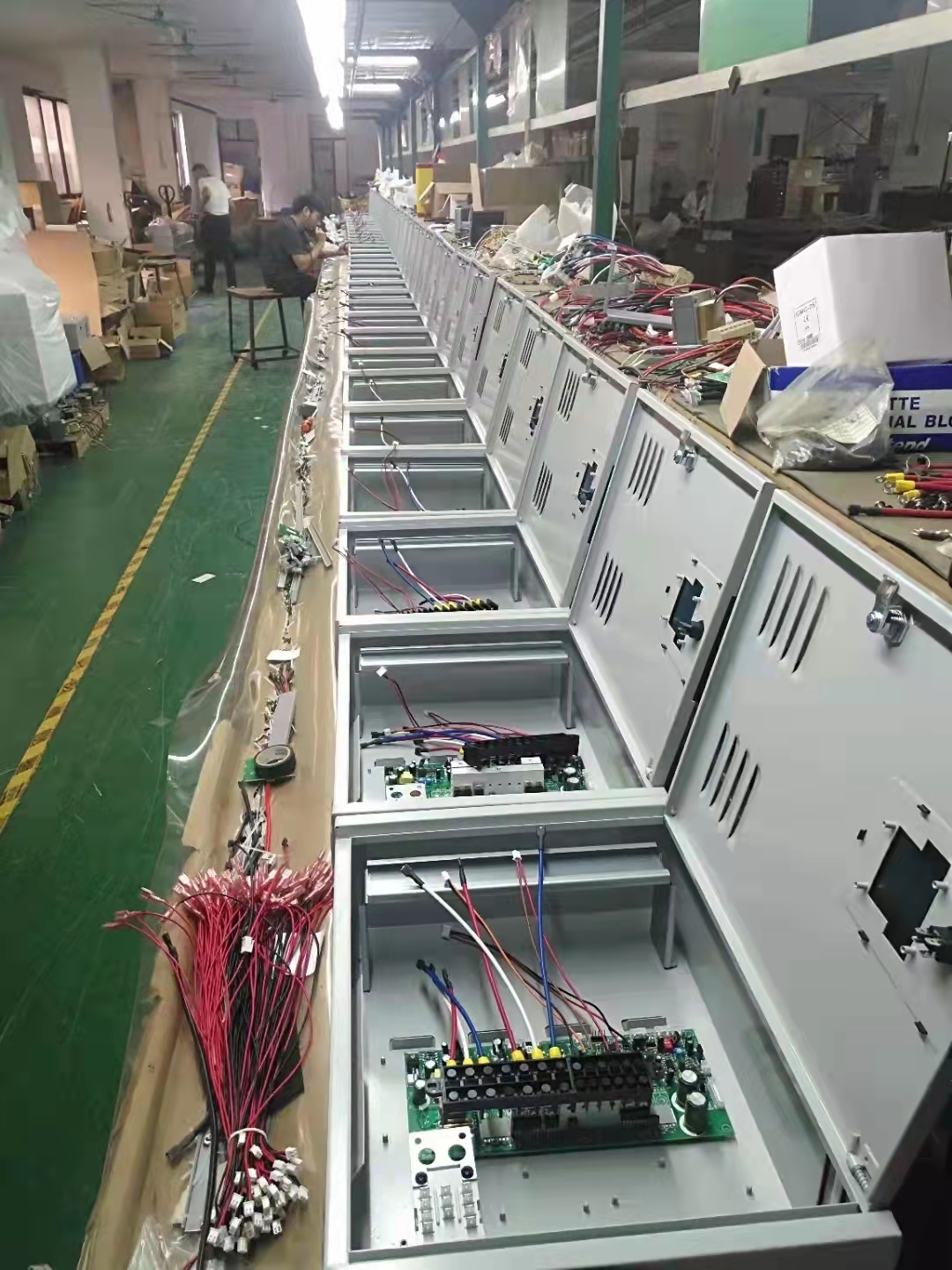

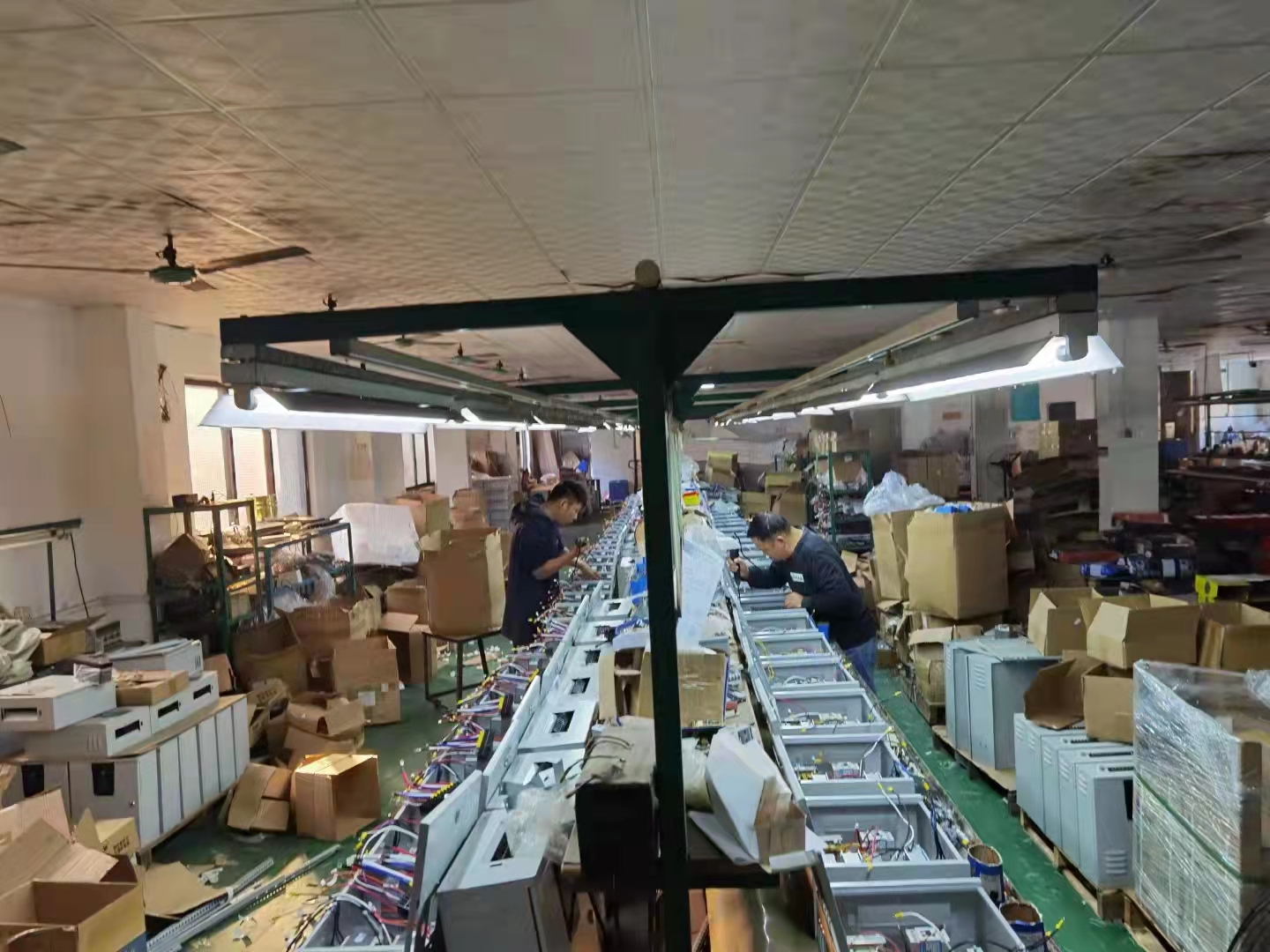

-Factory and Warehouse-

Click to Download Catalogue here

-Additional Info-

Packaging: Export Packing
Transportation: Fedex, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western union, Paypal, L/C, Credit Card and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally

-Related Products-

We Can Supply Apollo ARD of the Following Models:
Apollo ARD：TPS-11,TPS-15,TPS-25,TPS-39, TPS-45, TPS-60, TPS-100

-RFQ-

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
