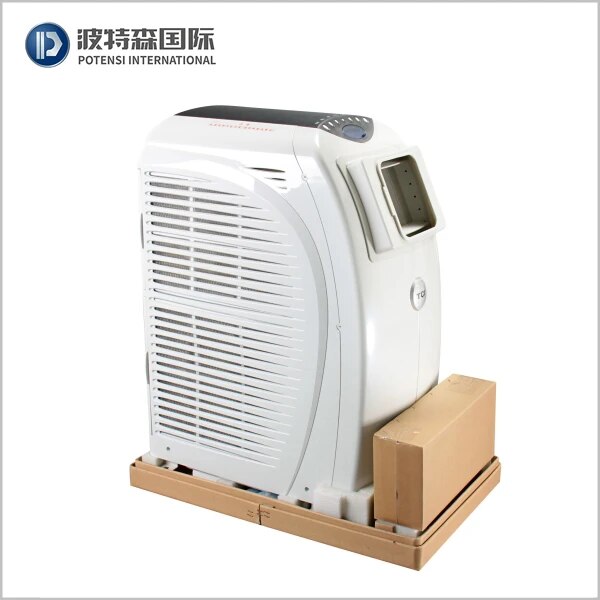

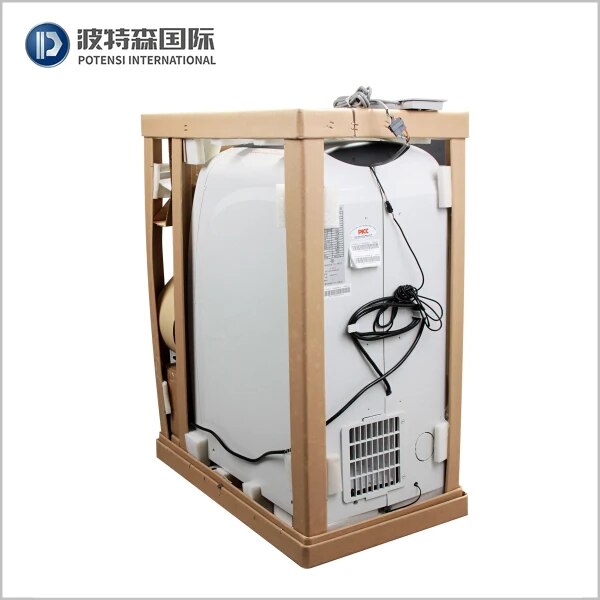

TCL elevator Air conditioner cold and warm KC-25/DY-D
TCL elevator Air conditioner cold and warm KC-25/DY-D

TCL elevator Air conditioner cold and warm KC-25/DY-D

Model NO.
POTENSI-013167
Quantity:

TCL Elevator Conditioner Specification
TCL ELEVATOR AIR CONDITINER KC-25/A27DTCL Elevator air conditioner KY-25/EY-DTCL Elevator air conditioner KY-25/EY-DTCL Elevator air conditioner KYD-32/DY-DTCL Elevator air conditioner KYD-32/DY-D
Model NoKC-25/A-27DKY-25/EY-DKYD-25/DY-DKYD-32/DY-DKYD-46/DY-D
TYPEcoolingcooling cooling and heating cooling and heating cooling and heating
Rated Voltage220V220V220V220V220V
Rated frequency50HZ50HZ50HZ50HZ50HZ
Rated current4.6A4.6A4.6A4.6A4.6A
Input power under the harshest conditions5.5A5.5A5.5A5.5A5.5A
Rated cooling capacity2500W2500W2500W3200W4600W
Rated heating capacity//1800W1800W1800W
Rated input power1000W780W1000W1250W1600W
Circulating air volume580m²/h330m²/h400m²/h420m²/h420m²/h
Electric shock protectionClass IClass IClass IClass IClass I
Weight28KG24KG36KG40KG46KG
Refrigerant/volumeR22//650gR410A//650g  R22/650gR22/650gR22/650g
Machine size470*573*390270*480*650775*365*568775*365*568775*365*568



potensi elevator company profile
potensi warehouse
potensi market
potensi value and service

RFQ
——————

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?

Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)

Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.

Related Tag
——————


Related PROJECT
——————


Related Video
——————


    watch more potensi elevator videos

    Related Stories
    ——————
    -What we do-
    • All of our elevators and escalator are manufactured with the latest European standards EN81-20/50 and EN115.
    • OEM & ODM production.
    • Supply a ONE-STOP service/solution for your modernization work for the old elevator and escalator.
    • Supply the original spare parts for all renowned brand lifts, like Mitsubishi, Kone, Toshiba, Schindler, Otis, Thyssenkrupp, Hitachi, Fujitec, etc.
