Model No: BUNN016
BST Elevator Car Air Sterilizer Machine Air Purifier Disinfector BUNN016丨Potensi Elevator
Quantity :
-Hot Searches-
Air Sterilizer BUNN016, air purifier disinfector, Elevator Car Air Sterilizer Machine, air sterilizer and purifier, air purifier, air disinfector
We are the wholesaler of the Elevator Air Sterilizer BUNN016, all of them are supplied directly by the factory. We sincerely looking for cooperation with elevator parts dealers or Maintenance companies from all over the world. Potensi is looking forward to working with you in the near future.
Air Sterilizer BUNN016, air purifier disinfector, Elevator Car Air Sterilizer Machine, air sterilizer and purifier, air purifier, air disinfector
We are the wholesaler of the Elevator Air Sterilizer BUNN016, all of them are supplied directly by the factory. We sincerely looking for cooperation with elevator parts dealers or Maintenance companies from all over the world. Potensi is looking forward to working with you in the near future.
-BST Elevator Air Sterilizer BUNN016 Product Outline-
● Double functions of highly efficient disinfection and purification
● All-round disinfection and purification of elevator air and walls
● Peaceful coexistence of human and machine to realize real-time disinfection and purification
● Ultar-thin design for easy installation and maintenance
● Intelligent biological recognition
● Internet of Things optional
-Product Description-
Brand: BST
Products： BST Elevator Air Sterilizer BUNN016
OEM Parts: No
Model:BUNN016
-BST Elevator Air Sterilizer BUNN016 Ways of Installation-

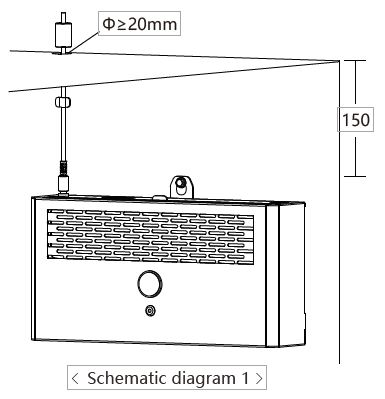

1. Please reserve the top wiring and operation space, and the diameter
of the wire hole is not less than 20 mm. In consideration of subsequent
maintenance,it is recommended to reserve a space of 150 mm-300 mm
between the top of the product and the top of the car.
< Schematic diagram 1 >
2. Remove the screws on the fixing plate of the sterilizer,
pull the fixing plate vertically upward to the top,
and screw in the screws again。< Schematic diagram 2 >

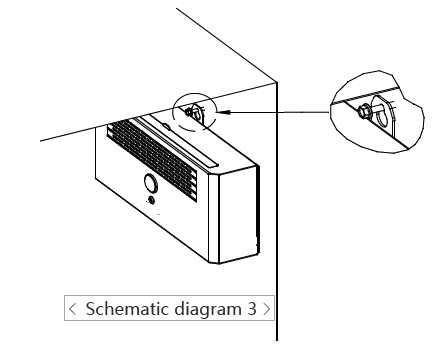

3. Punch the bottom hole and screw the side wall
of the car 150 mm from the top. (it is recommended
that the plate below 1.8mm does not need bottom hole.
1.8 ~ 2.5 plate thickness positioning holes can be drilled 4.6mm.
Adjust the torque from small to large according to the thickness of the
plate and the material, so as to avoid the screw breaking due to excessive torque).
< Schematic diagram 3 >

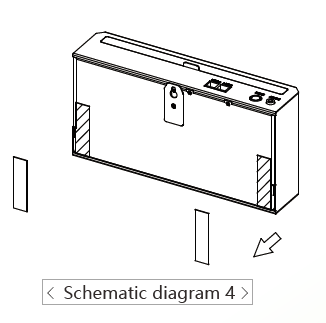

4. Remove the 3M strong adhesive tape release paper on the back of the sterilizer.
< Schematic diagram 4 >

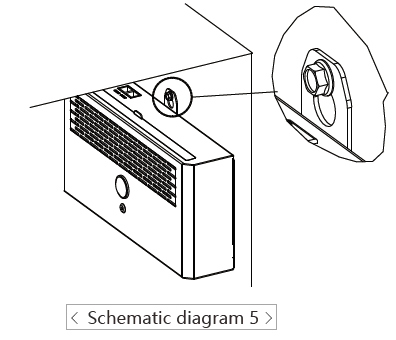

5. Hang the sterilizer on the mounting screw.
Tighten the tapping screw with the adjustable hexagon wrench.< Schematic diagram 5 >

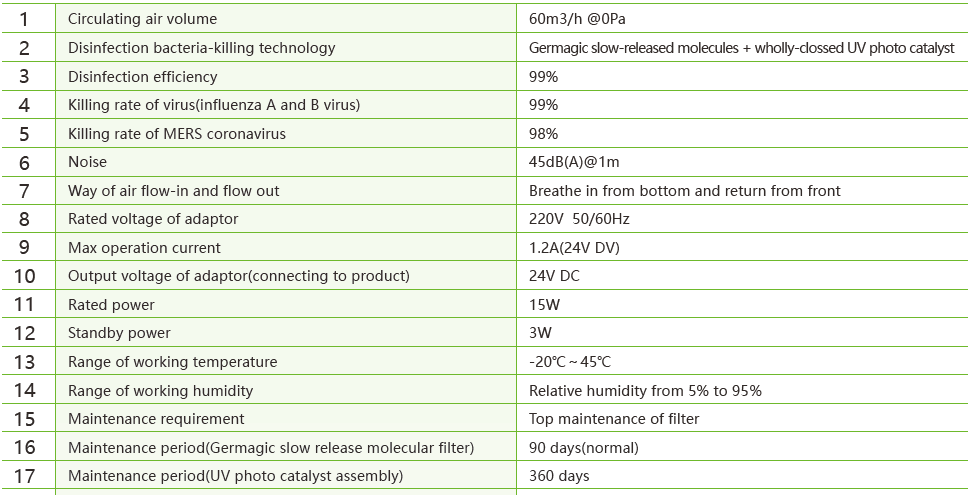

-BST Elevator Air Sterilizer BUNN016 Performance Parameter-
Products： BST Elevator Air Sterilizer BUNN016
OEM Parts: No
Model:BUNN016
-BST Elevator Air Sterilizer BUNN016 Ways of Installation-
1. Please reserve the top wiring and operation space, and the diameter
of the wire hole is not less than 20 mm. In consideration of subsequent
maintenance,it is recommended to reserve a space of 150 mm-300 mm
between the top of the product and the top of the car.
< Schematic diagram 1 >
2. Remove the screws on the fixing plate of the sterilizer,
pull the fixing plate vertically upward to the top,
and screw in the screws again。< Schematic diagram 2 >
3. Punch the bottom hole and screw the side wall
of the car 150 mm from the top. (it is recommended
that the plate below 1.8mm does not need bottom hole.
1.8 ~ 2.5 plate thickness positioning holes can be drilled 4.6mm.
Adjust the torque from small to large according to the thickness of the
plate and the material, so as to avoid the screw breaking due to excessive torque).
< Schematic diagram 3 >
4. Remove the 3M strong adhesive tape release paper on the back of the sterilizer.
< Schematic diagram 4 >
5. Hang the sterilizer on the mounting screw.
Tighten the tapping screw with the adjustable hexagon wrench.< Schematic diagram 5 >
-BST Elevator Air Sterilizer BUNN016 Performance Parameter-

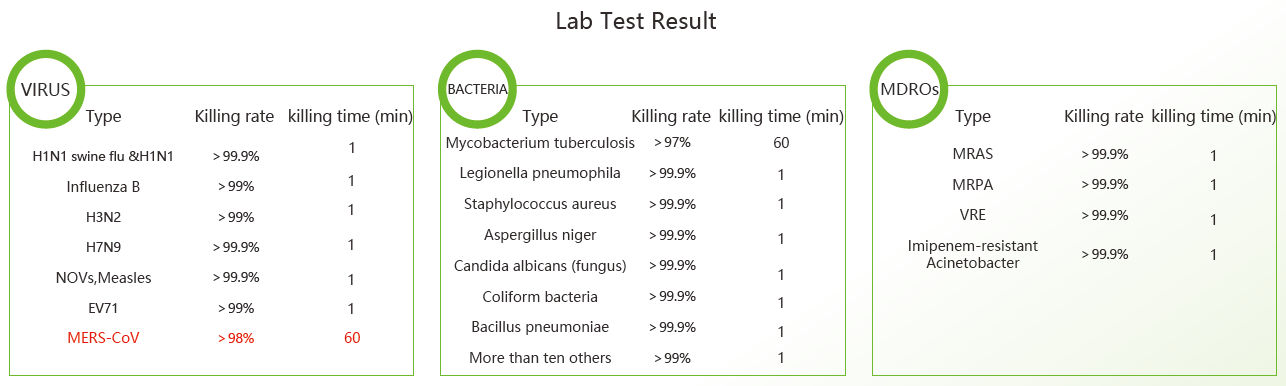

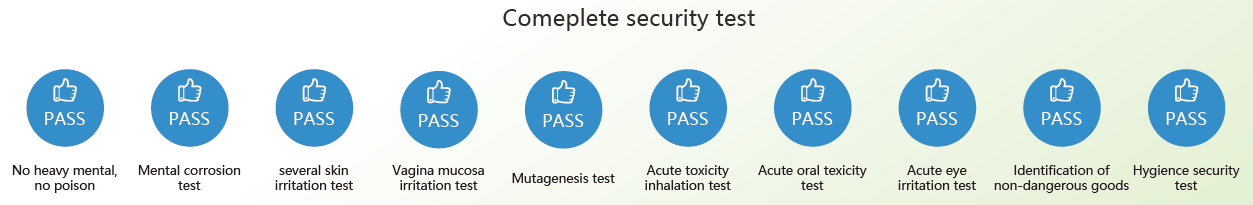

-BST Elevator Air Sterilizer BUNN016 Related Tests-
-Additional Info-
Packaging: Export Packing
Transportation: Fedex, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western union, Paypal, L/C, Credit Card and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally
Transportation: Fedex, UPS, DHL, TNT, EMS, Sea, Land and Air transportation, etc.
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T, Western union, Paypal, L/C, Credit Card and so on.
Incoterm: CFR, CIF, FOB, FCA, CPT
Delivery Time: About 7 working days against payment as generally
-Related Products-
We Can Supply Escalator or Elevator Cleaning Machine Sterilizer of the Following Models:
Escalator or Elevator Cleaner LP-750, LP-460, SC-450, AT510, BUNN016, Weclean
-RFQ-
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
