elevator traction machine suppliers
elevator traction machine suppliers
Model No: WTYF2 SWTYF2 Series Machines

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine

Quantity :
add to cart
Contact Now
Model:KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine
VoltageAC380V
Roping2:1/1:1
WrapSingle
Capacity1000kg~4000kg
Speed1.0m/s~2.5m/s
Protection GradeIP41
Ins.ClassF
Traction machine pole30
Starts per hour240 times per hour
undercutU
Brakedrum brake

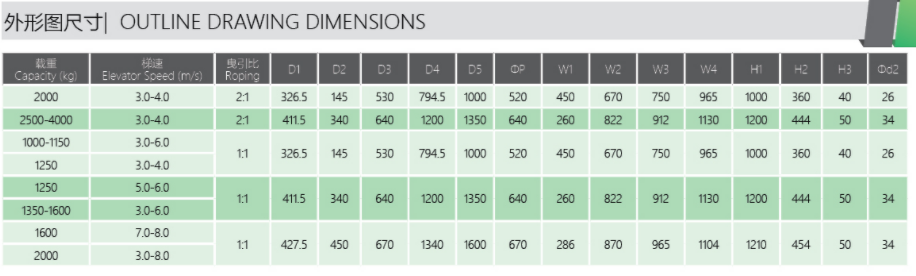

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine OUTLINE DRAWING

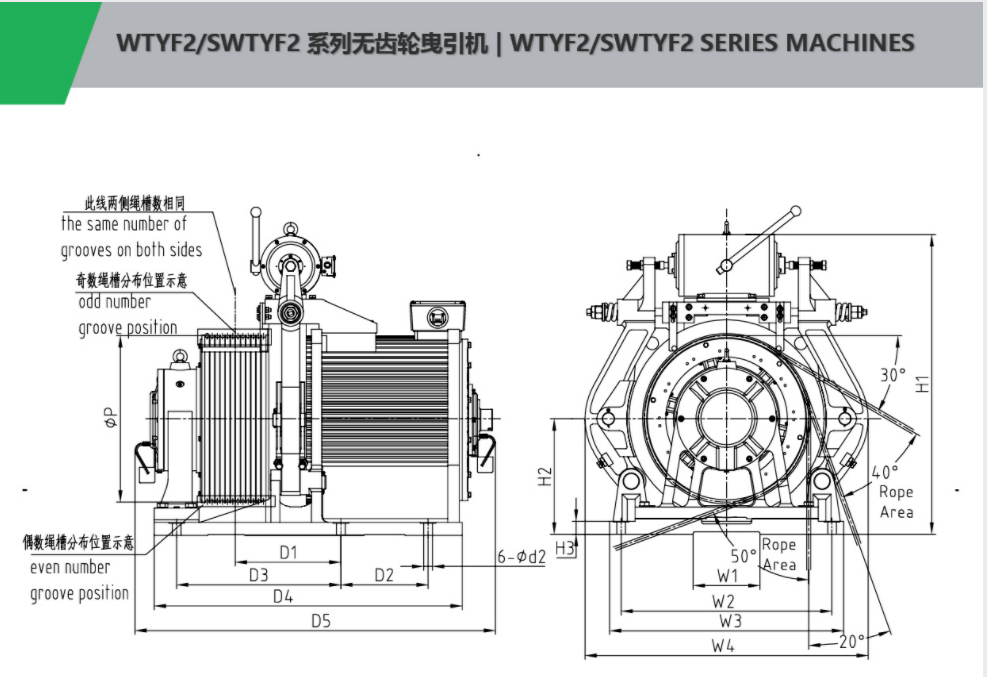

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine DRAWING

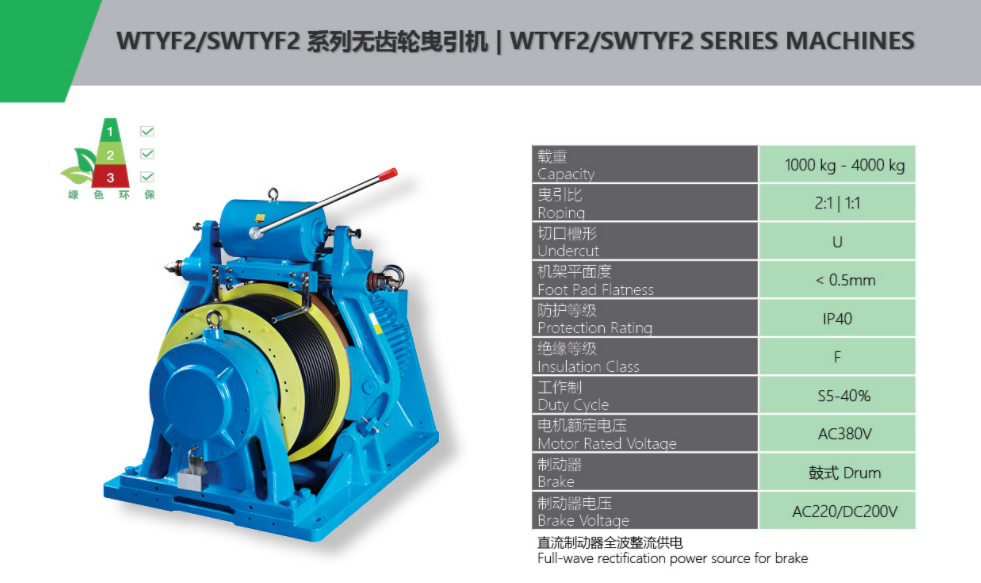

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine ROPING

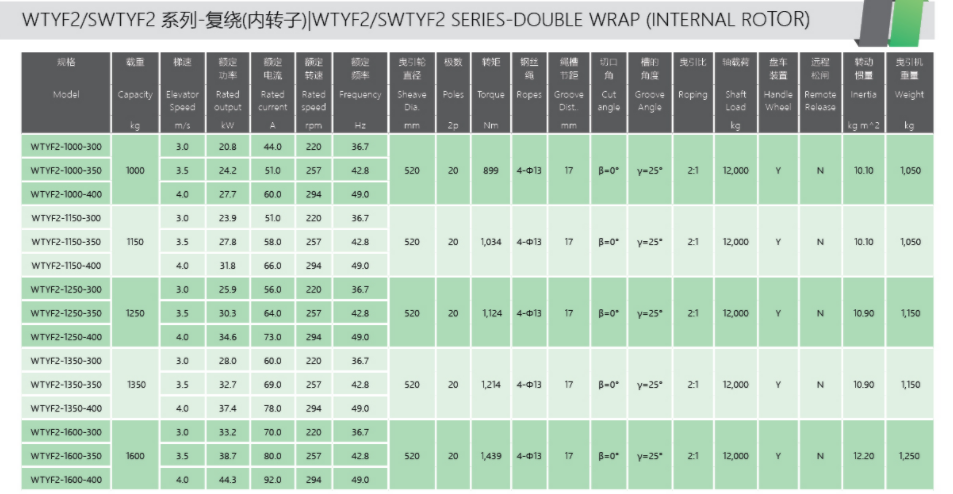

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine DOUBLE WRAP

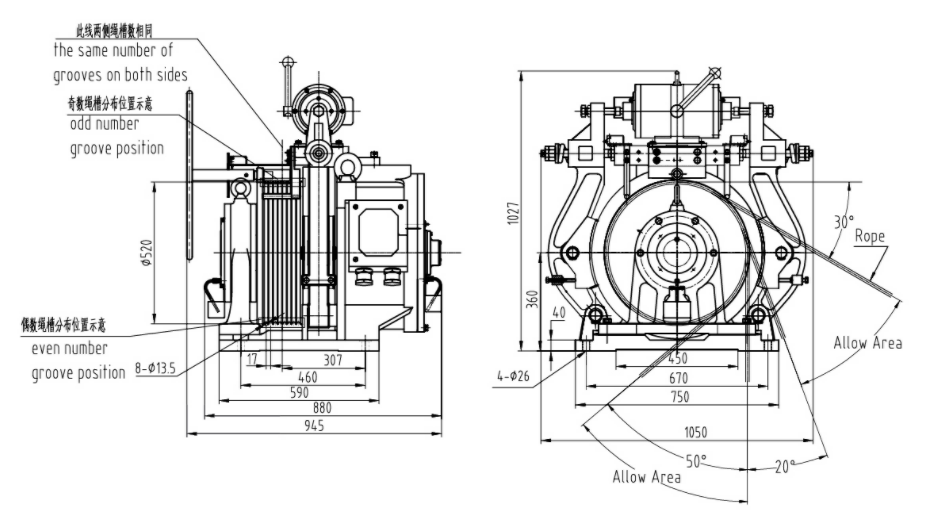

KDS WTYF2 SWTYF2 Series Machines Elevator Traction Machine



Factory Show
——————

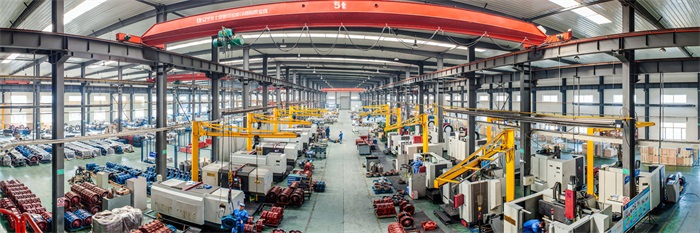

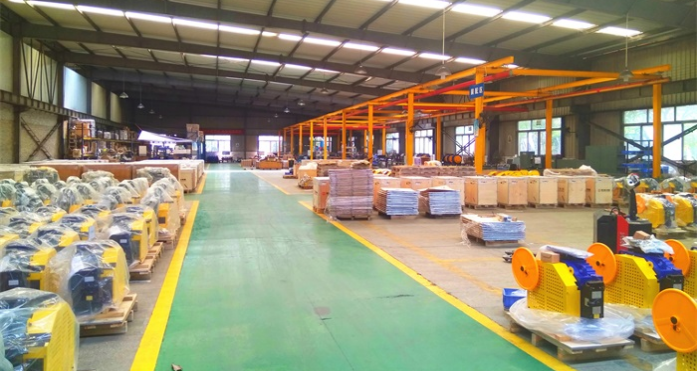

potensi traction machine factorypotensi traction machine stock warehouse

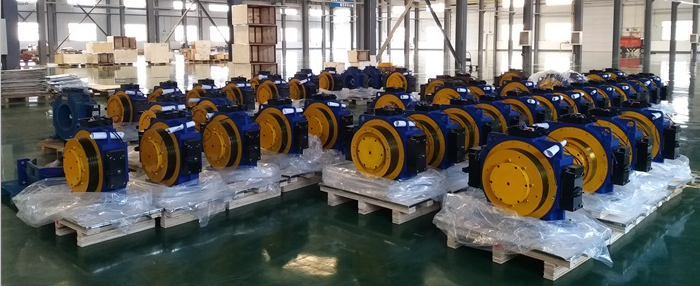

elevator traction machines in stock
RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
