Model No: Escalator Step Chain

External Roller Escalator Step Chain | Potensi Elevator

Quantity :

add to cart

Contact Now

Keywords

Escalator step chain, Step chain, Escalator Mechanical Parts Supplier, High Quality Escalator Mechanical Spare Parts for Sale, Step Chain Assembly, Step Chain for Schindler Escalators, Schindler T133.33, ThyssenKrupp Escalator Step Chain, Thyssen FT722/FT723/FT724, KM5071468G01, 23KV-SF-W 2STRINGS R20, KONE escalator step chain, KM5009350H01, OTIS escalator step chain, DAA26150A, DEE3685363, Escalator spare parts, S650C003, S650C607, KM5229139H01, KM5229139G01, Otis Step Chain ASSY 1000mm 800mm, KM5229139H01

Application

Our escalator step chain is perfectly available for all major escalator brands, especially for Hitachi Elevators, OTIS Elevators, LG Elevators, Hyundai Elevators, Mitsubishi Elevators, ThyssenKrupp Elevators, Fujitec Elevators, Schindler Elevators, KONE Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, KOYO Elevators, SJEC Elevators, BLT Elevators, CANNY Elevators

Basic Info

Brand:Potensi

Product: External Roller Escalator Step Chain
Escalator OEM Parts: YES

Additional Info

Packaging: Export Packing
Transportation: Ocean,Air,Courier Service
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T,Western Union，Credit Card etc.
Incoterm: CFR,CIF
Delivery Time: 10 Days

Product Description

External Roller Escalator Step Chain

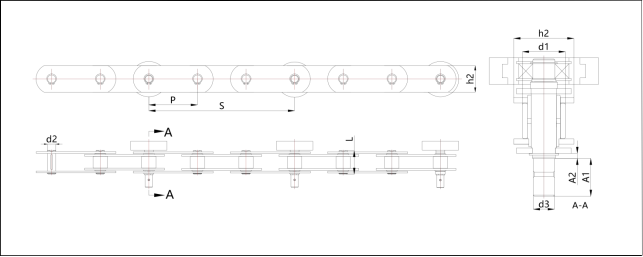

Parts Number	Pitch	Step distance	Roller diameter	Heigh of inner chainplate	Diameter of pin	Length of hollow pin	Prolonged end for the pin shaft of the steps			Anti-pull load
	P	S	d1	h2	d2	L	d3	L		min KN
	mm	mm	mm	mm	mm	mm	mm	A1 mm	A2 mm	min KN
T100-520W	100	400	54	75	34.1	88	20	43	9	520
JTC133A	133.33	400	45	55	23	78	20	36	2	260
JTC133R	133.33	400	45	55	23	72	19	61.3	13.5	260
9700	133.33	400	39.37	60	22	70	20	49.5	15	260
9700-01	133.33	400	39.37	60	22	70	20	43	21.5	260/350
FTH133E	133.33	400	100	55	24	56.5	18	31	5	260
FTH133D	133.33	400	40	55	24	64.5	20	36	2.5	300
JTC133D	133.33	400	55	72	32	55.2	17	36	5	320
JTH133B	133.33	400	100	65	24	56.5	18	31	5	330
9700-02	133.33	400	53.98	75	30	73	20	43	20	350
JTC133B	133.33	400	55	75	32	79	20	36	2	400
JTC133L	133.33	400	63.5	75	32	68	20	49	16.5	400
JTC133N	133.33	400	55	75	32	73	19	61.25	12.5	400
JTC133C	133.33	400	55	75	32	68	18	36	2	400
JTC133E	133.33	400	55	75	32	61	18	33	4	400
JTC133M	133.33	400	63.5	75	40	80.5	20	47	11	520
T135-180WA	135.46	406.4	45	45	21	51	Joint shaft			180
T135-180WB	135.46	406.4	45	45	20	51	15	22	8.4	180
T135-250WA	135.46	406.4	45	60	25	55	Joint shaft			250
T135-250WB	135.46	406.4	45	60	25	55	15	22	4.2	250
T135-300WA	135.46	406.4	60	70	30	56	Joint shaft			300
T135-300WB	135.46	406.4	60	70	30	56	15	22	4.2	300
T135-350WA	135.46	406.4	60	80	35	57	Joint shaft			350
T135-350WB	135.46	406.4	60	80	35	57	15	22	4.2	350
T135-400WA	135.46	406.4	65	75	35	71				400
T135-400WB	135.46	406.4	65	75	35	71				400
T135-450WA	135.46	406.4	65	85	40	71				450
T135-450WB	135.46	406.4	65	85	40	71				450
T200	200	400	110	80	40	91	36	19	6	630

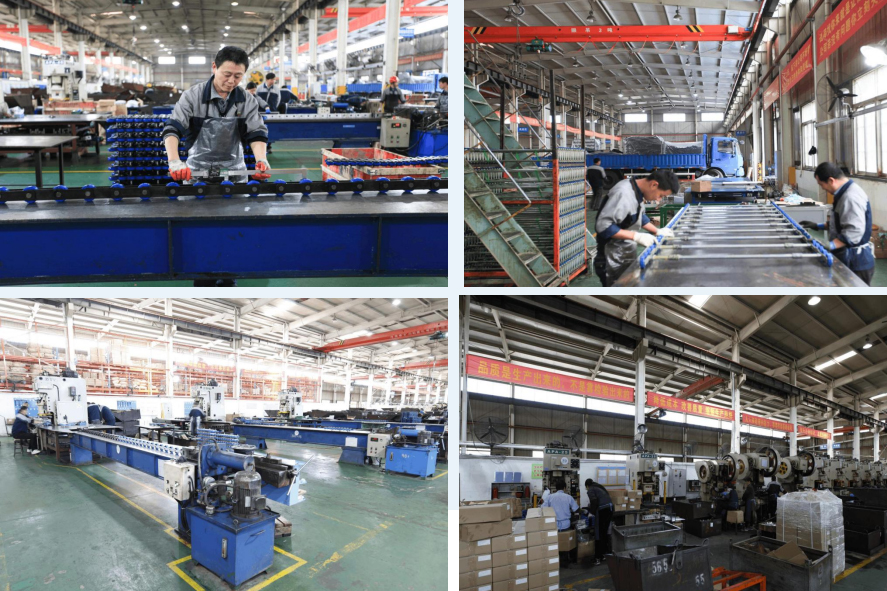

Workshop

Warehouse

Catalog Download

RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
