Model No: 506NCE T135.7A

Escalator Step Chain for OTIS Escalators 506NCE T135.7A | Potensi Elevator

Quantity :

add to cart

Contact Now

-Escalator Step Chain Hot Search-

OTIS Escalators 506NCE, Escalator step chain, Step chain, Escalator Mechanical Parts Supplier, High Quality Escalator Mechanical Spare Parts for Sale, Step Chain Assembly, Step Chain for ThyssenKrupp Escalator Step Chain, KONE escalator step chain, KM5009350H01, OTIS escalator step chain, DAA26150A, DEE3685363, Escalator spare parts, S650C003, S650C607, KM5229139H01, KM5229139G01, Otis Step Chain ASSY 1000mm 800mm, KM5229139H01, 506NCE T135.7A

-Escalator Step Chain Application-

Our escalator step chain is perfectly available for all major escalator brands, especially for OTIS Elevators, Hitachi Elevators, LG Elevators, Hyundai Elevators, Mitsubishi Elevators, ThyssenKrupp Elevators, Fujitec Elevators, Schindler Elevators, KONE Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, KOYO Elevators, SJEC Elevators, BLT Elevators, CANNY Elevators

-Escalator Step Chain Basic Info-

Brand: OTIS
Products：Escalator Step Chain for OTIS Escalators 506NCE T135.7A
Escalator OEM Parts: YES
Model: OTIS 506NCE T135.7A

-Escalator Step Chain Product Description-

Escalator Step Chain for OTIS Escalators 506NCE

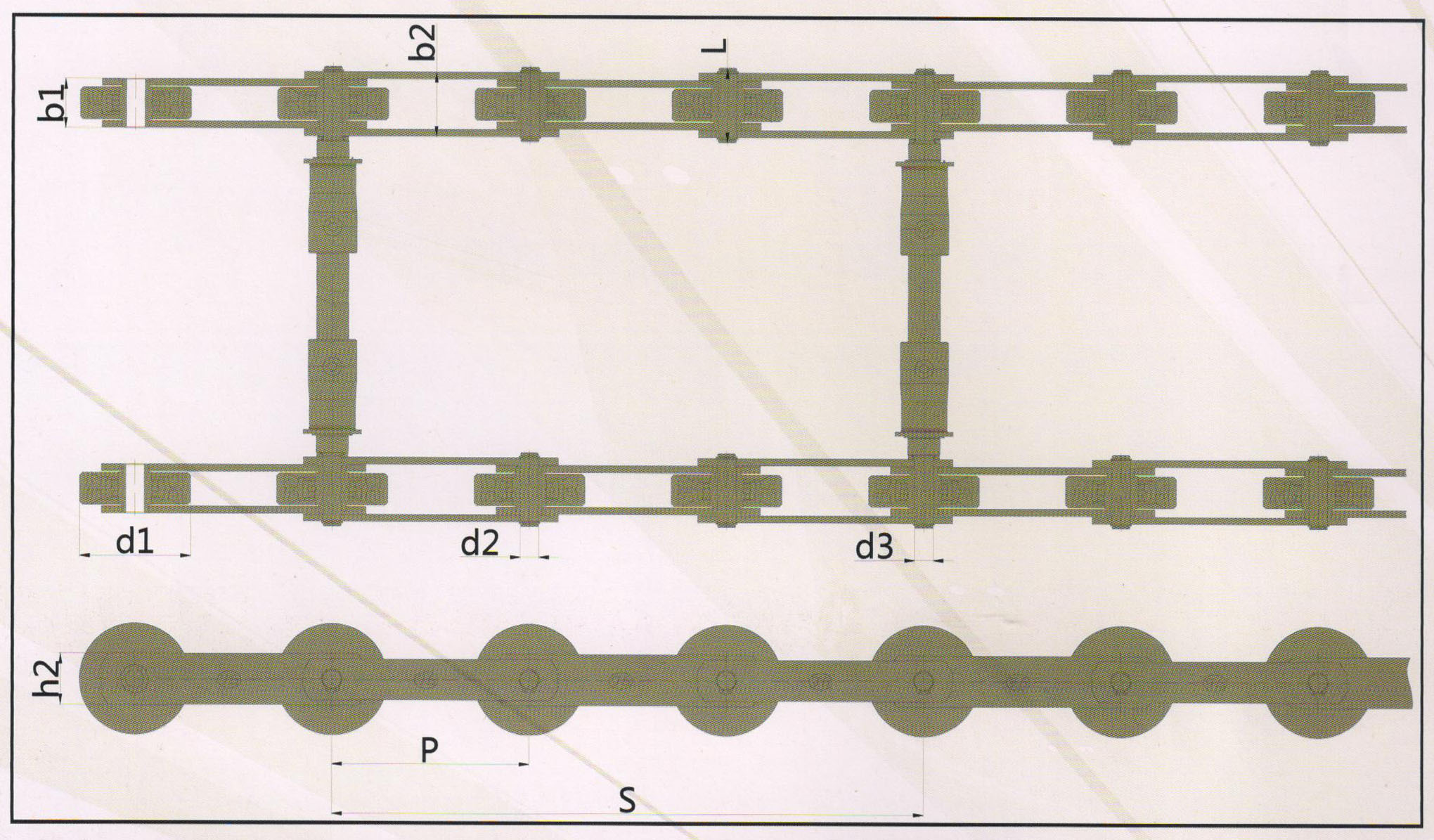

Parts Number	Pitch	Step Distance	Roller Diameter	Inner width of outer pitch	Outer width of outer pitch	Heigh of Inner Chainplate	Diameter of Pin	Length of Hollow Pin	Cascade Pin Shaft Diameter	Anti-Pull Load
	P	S	d1	b1	b2	h2	d2	L	d3	min KN
	mm	mm	mm	mm	mm	mm	mm	mm	mm	min KN
T135.4M	135.46	406.4	76.2	33.8	44.6	35.2	12.7	51	12.7	111
T135.4S	135.46	406.4	76.2	34	44.6	35.2	15	49.4	15	90
T135.4T	135.46	406.4	76.2	34	44.6	45.2	20	50.6	20	150
T135.4U	135.46	406.4	76.2	36	46.6	35.2	25	57	20	205
T135.7B	135.73	407.2	76.2	34	34.8	45.2	20	50.6	20	150
T135.4X	135.46	406.4	76.2	33.8	44.6	38.2	12.7	51	12.7	111
T135.7A	135.73	407.2	76.2	33.8	44.6	35.2	12.7	51	12.7	111

-Escalator Step Chain Factory Workshop-

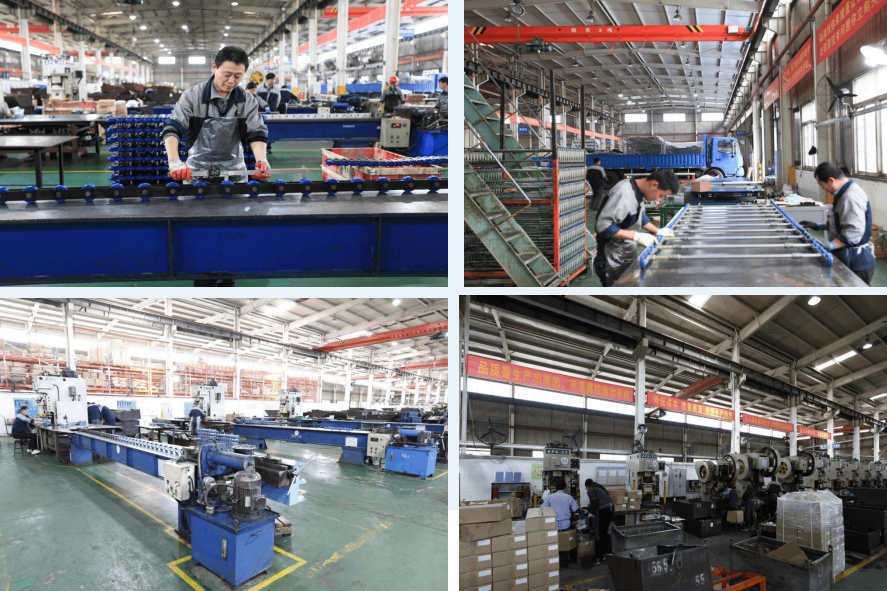

Escalator Step Chain workshop

-Escalator Step Chain Warehouse-

Escalator Step Chain warehouse

Click to Download Catalogue here

-Related Products-
We Can Supply Escalator Step Chain of the Following:
Escalator Step Chain OTIS Step Chain,Thyssenkrupp Step Chain,SJEC Step Chain, LG Sigma Step Chain,Kone Step Chain,Schindler Step Chain etc.

-RFQ-

Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
