Model No: Escalator Step Chain

Escalator Sidewalk pedal conveyor chain | Potensi Elevator

Quantity :

add to cart

Contact Now

Keywords

Escalator step chain, Step chain, Escalator Mechanical Parts Supplier, High Quality Escalator Mechanical Spare Parts for Sale, Step Chain Assembly, Step Chain for Schindler Escalators, Schindler T133.33, ThyssenKrupp Escalator Step Chain, Thyssen FT722/FT723/FT724, KM5071468G01, 23KV-SF-W 2STRINGS R20, KONE escalator step chain, KM5009350H01, OTIS escalator step chain, DAA26150A, DEE3685363, Escalator spare parts, S650C003, S650C607, KM5229139H01, KM5229139G01, Otis Step Chain ASSY 1000mm 800mm, KM5229139H01

Application

Our escalator step chain is perfectly available for all major escalator brands, especially for Hitachi Elevators, OTIS Elevators, LG Elevators, Hyundai Elevators, Mitsubishi Elevators, ThyssenKrupp Elevators, Fujitec Elevators, Schindler Elevators, KONE Elevators, Toshiba Elevators, Fuji Elevators, Express Elevators, Sigma Elevators, KOYO Elevators, SJEC Elevators, BLT Elevators, CANNY Elevators

Basic Info

Brand: Potensi
Escalator OEM Parts: YES

Additional Info

Packaging: Export Packing
Transportation: Ocean,Air,Courier Service
Place of Origin: CHINA
Certificate: EN115, CE, Gost-R, SASO, VOC, KTL, UL, CSA
Payment Type: T/T,Western Union，Credit Card etc.
Incoterm: CFR,CIF
Delivery Time: 10 Days

Product Description

Escalator Sidewalk pedal conveyor chain

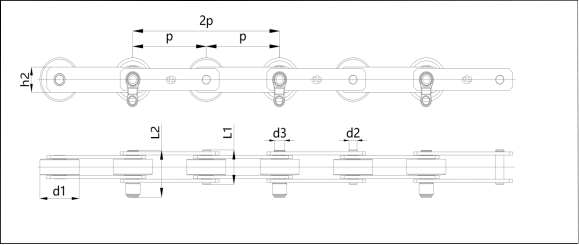

Parts Number	Pitch	Step Distance	Roller Diameter	Heigh of Inner Chainplate	Diameter of Pin	Length of Hollow Pin	Length of Hollow Pin	Diameter of Hollow pin	Anti-pull load
	p	2p	d1	h2	d2	L1	L2	d3	minKN
	mm	mm	mm	mm	mm	mm	mm	mm	minKN
XJF131	131.33	262.66	70	40	14.63	55	75.3	18.26	150
XJF131A	131.33	262.66	80	40	18.26	56	75.3	18.26	150
SF131	131.33	262.66	70	40	14.63	55	75.3	18.26	150
SF131A	131.33	262.66	70	40	14.63	55	75.3	18.26	160
KF266.66	133.33	266.66	70	40	14.63	55	75.3	18.26	150
F135.4	135.46	270.92	76.2	45	12.7	51	67.7	20	115
F135.4D	135.46	270.92	76.2	45	20	50.6	67.7	20	150

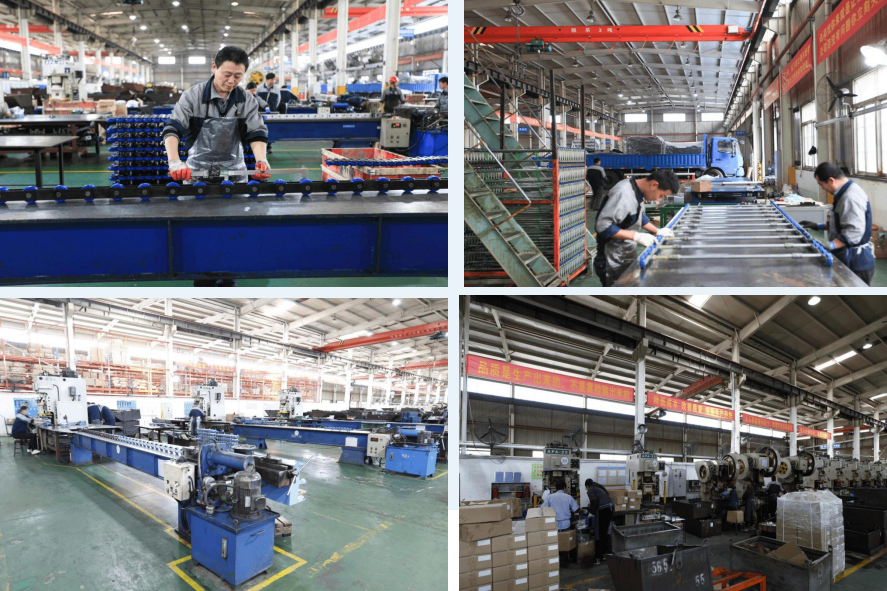

Workshop

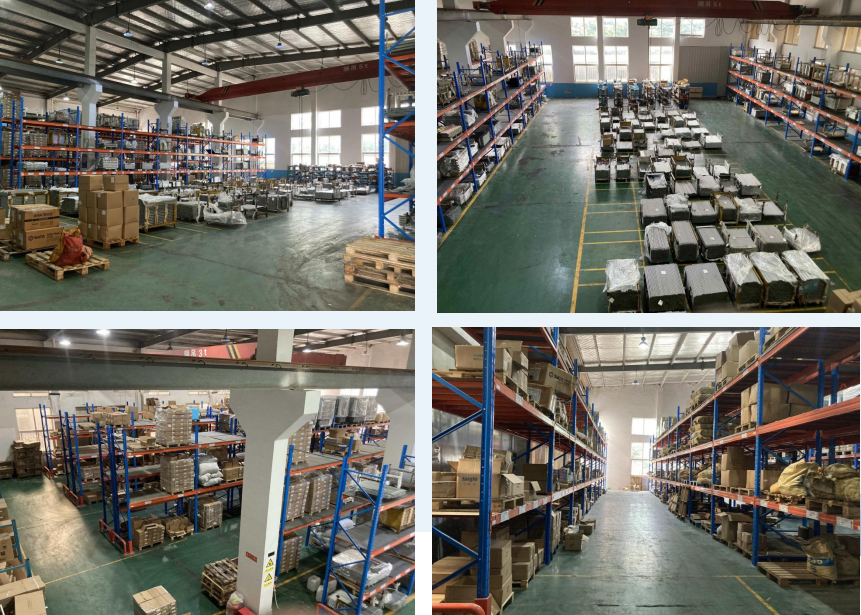

Warehouse

Catalog Download

RFQ
——————
Q1. (Whole elevator) What information is absolutely needed before asking for the price?
A. Loading capacity or how many persons? ( eg. 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg, etc..)
B. How many floors/ stops/ doors?
C. What's the rated speed?
D. It will be with a machine room or without machine room?
E. What's the step width, lifting height, and angle degree if it's the escalator?
Q2. (Spare parts of Lift and Escalator) What information is needed before asking for the price?
(1) Pls tell us the elevator or escalator brand name.
(2) Pls, send us the picture of that spare part, and especially for the data plate with specifications.
(3) Pls, tell us the order quantity. ( how many pcs you needed?)
Q3. What about the packaging?
All elevator parts will be packed into standard exported Plywood boxes.
