KONE Traction Elevator Machine Installation Guide
Guide reading:
Do you know how to install the Kone traction machine? In this article, we will show you some installation details for Kone motor MX18, Kone traction machine MX32, Kone machine MX14, Kone lift machine MX10 for your reference.

Kone Traction machine MX18 without direction wheel

It should be installed on I-beam load-bearing beam or machine room floor.
--The schematic diagram is as follows:

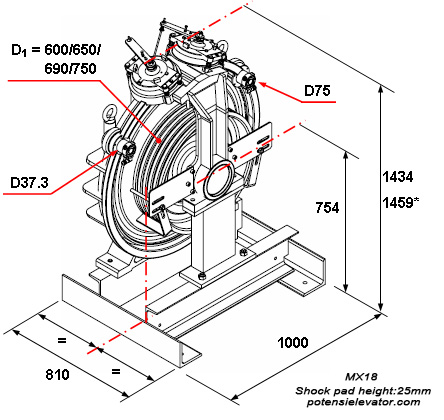

Kone Traction machine MX18 installation guide





Kone Traction machine MX18 with direction wheel

--Installation position:
It should be installed on I-beam load-bearing beam.
--The schematic diagram is as follows:
Kone Traction machine MX18 with direction wheel

--Installation position:
It should be installed on the machine room floor or I-beam load-bearing beam.
--The schematic diagram is as follows:

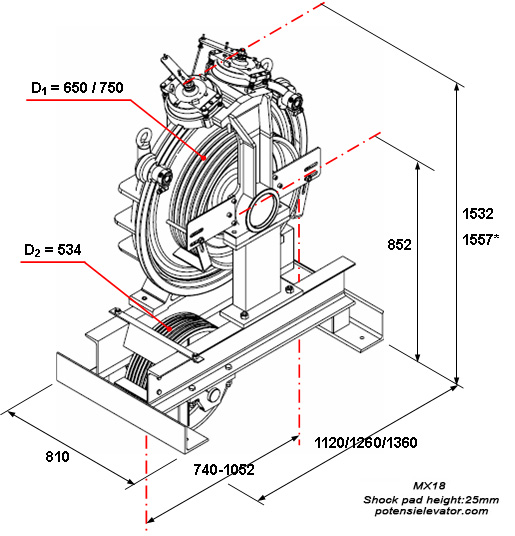

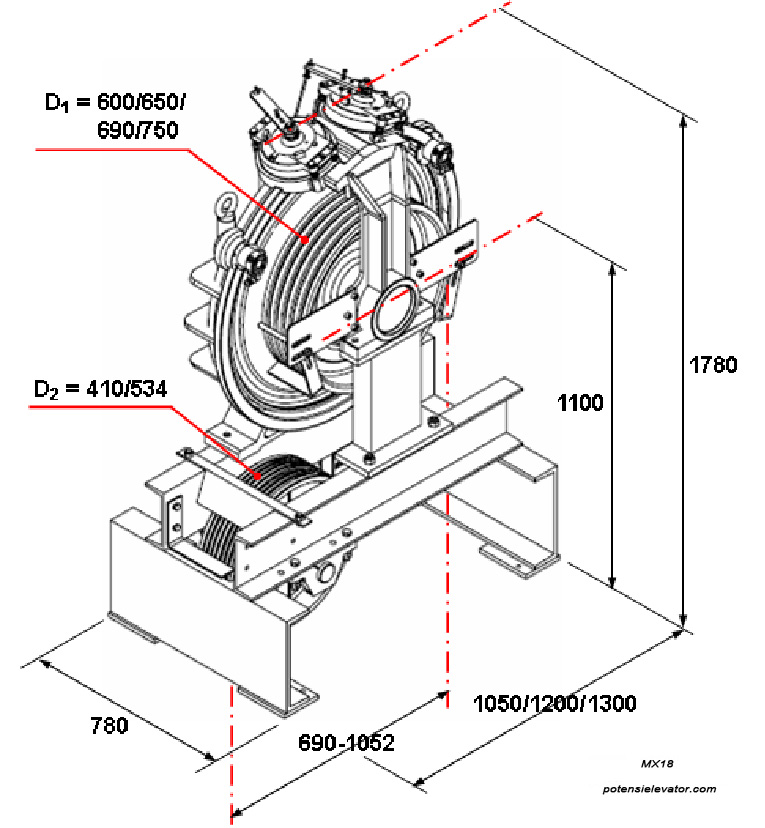

MX18 with direction wheel drawing
Please Note: In order to prevent inconvenient disassembly and assembly of the brake, I-beam load-bearing beams should be laid on the base of the MX18 traction machine with such a structure, and attention should be paid to the height of the machine room.


Kone Traction machine MX32 with direction wheel

--Installation position:
It should be Installed on the machine room floor (concrete load-bearing beam).
--The schematic diagram is as follows:

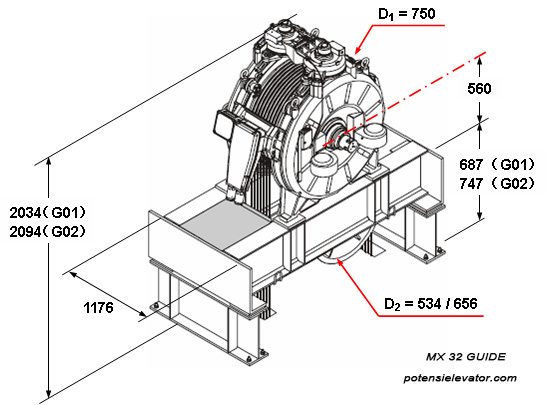

kone traction machine MX32 with direction wheel installation drawing

Kone Traction machine MX14 with direction
--Installation position:
It should be installed on the I-beam load-bearing beam.
--The schematic diagram is as follows:

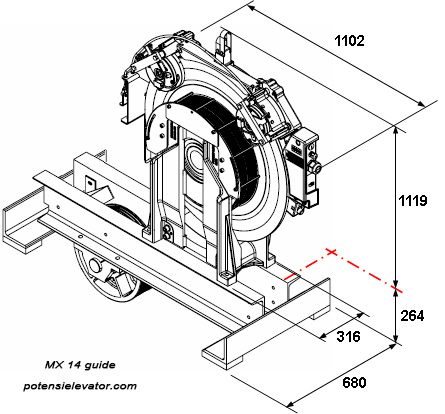

kone traction machine MX14 with direction wheel installation drawing

Kone Traction machine MX10 (Mono、S Mono)

--Installation position:
It should be installed on the car guide rail.
--The schematic diagram is as follows:

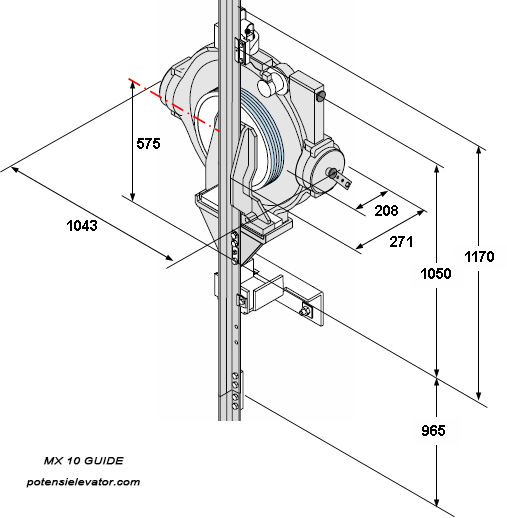

kone traction machine MX10 (S Mono)with direction wheel installation drawing
Kone Traction machine MX10 (S Mini)

--Installation position:
It should be installed on the I-beam load-bearing beam.
--The schematic diagram is as follows:

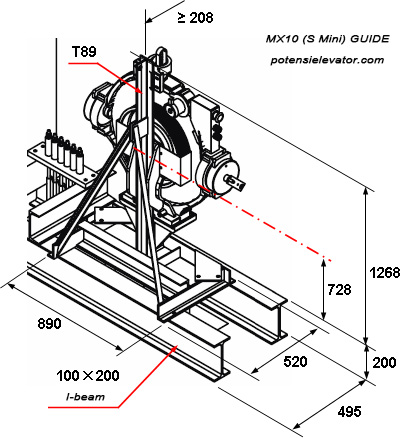

kone traction machine MX10(S Mini) with direction wheel installation drawing

Kone Traction machine MX10 (X Mini)

--Installation position:
It should be installed on the I-beam load-bearing beam.
--The schematic diagram is as follows:

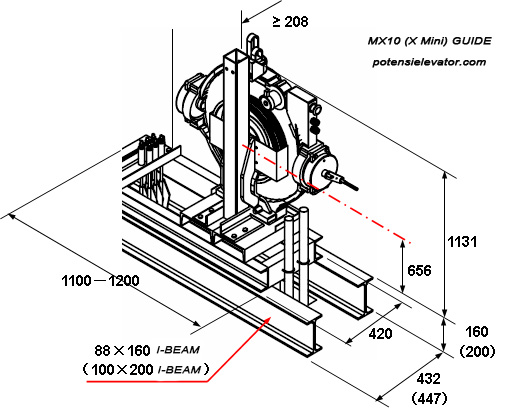

kone traction machine MX10（X Mini） with direction wheel installation drawing


Kone Traction machine MX20 (S Mono)

--Installation position:
It should be installed on the car guide rail.
--The schematic diagram is as follows:

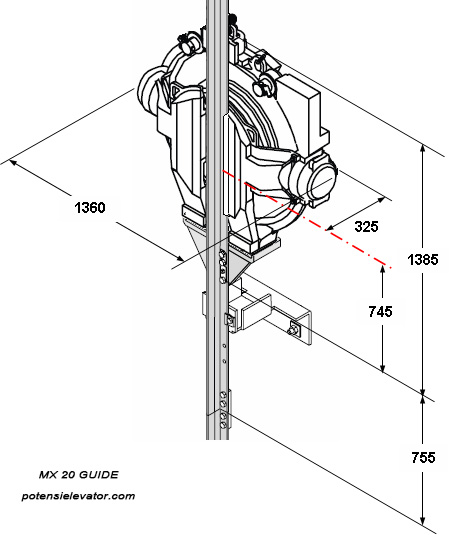

kone traction machine MX20（S Mono） with direction wheel installation drawing
